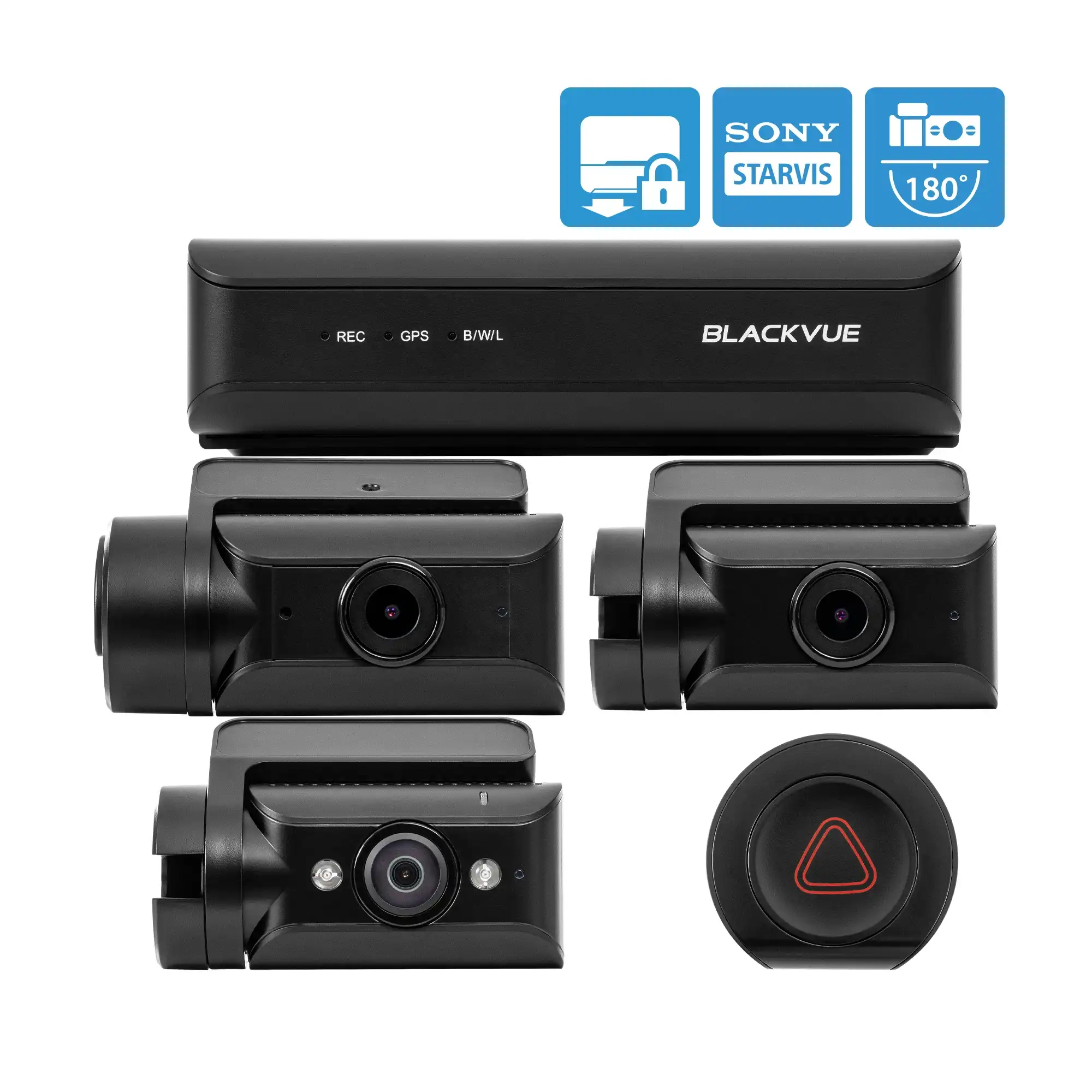

DR770X Box Truck

Total Video Protection for Trucks and Heavy Vehicles

The DR770X BOX TRUCK is ideal to secure most large commercial trucks. The waterproof (IP69K) infrared rear camera connects to the secure Box recording unit via a 15m video cable. This allows to monitor not only the road behind, but also cargo loading and unloading operations.

The ultrawide interior camera is also equipped with infrared LEDs to capture clear video of the cabin under any light.
You can also connect the optional Connectivity Module to keep the dashcam connected to the Cloud at all times.

Spesification

Buy

Specifications
Model Name	DR770X Box Truck
Channel	3CH
Highlights	Full HD + Full HD + Full HD (Front + Rear + Interior), Cloud, Wi-Fi, Triple Sony Sensors, External GPS and LTE Module
Product Dimensions	Main unit : Black / Length 130.0 mm x Width 101.0 mm x Height 33.0 mm / 209 g Front : Black / Length 62.5 mm x Width 34.3 mm x Height 34.0 mm / 43 g Rear Truck : Black / Length 70.4 mm x Width 56.6 mm x Height 36.1 mm / 157 g Interior IR : Black / Length 63.5 mm x Width 32.0 mm x Height 32.0 mm / 34 g Wireless Button : Black / Length 45.2 mm x Width 42.0 mm x Height 14.5 mm / 23 g
Rear Camera Connection	Coaxial cable
Memory Support	microSD card up to 256GB
Recording Modes	Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected) * When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode.
Parking Mode	YES (hardwiring cable included)
Parking Mode Event Voice Notifications	YES
Imaging Sensor	Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel) Rear: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel) Interior: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
Viewing Angle	Front : Diagonal 139°, Horizontal 116°, Vertical 61° Rear Truck : Diagonal 116°, Horizontal 97°, Vertical 51° Interior IR : Diagonal 180°, Horizontal 150°, Vertical 93°
Resolution Frame Rate	<Front – Rear Truck – Interior IR> Full HD (1920×1080) @ 60 fps – Full HD (1920×1080) @ 30 fps – Full HD (1920×1080) @ 30 fps *Frame rate may vary during Wi-Fi streaming.
Video Codec	H.264 (AVC)
Image Quality and Bitrate Front/Rear	Front / Rear / Interior Highest(Extreme): 16 + 10 + 10 Mbps Highest: 12 + 10 + 10 Mbps High 10 + 8 + 8 Mbps Normal: 8 + 6 + 6 Mbps
Format Free	YES (Adaptive)
Event File Overwrite Protection	YES (up to 51)
SD Card Failure Alert	YES
Scheduled Reboot	YES
Video File Extension	MP4
Wi-Fi	Built-in (802.11 b.g.n)
Cloud Compatible	YES
GPS	External (Dual Band : GPS, GLONASS)
Microphone	Built-in
Speaker	Built-in
Impact Sensor	3-Axis Acceleration Sensor
LED Indicators	Main unit : Recording LED, GPS LED, BT/Wi-Fi/LTE LED Front : Front & Rear Security LED Rear Truck : none Interior IR : Front&Rear Security LED EB-1 : Operating/Battery low voltage LED
Rear Camera IR Illumination	Rear Truck : 940nm (6 Infrared (IR) LEDS) Interior IR : 940nm (2 Infrared (IR) LEDS)
Button	EB-1 button : Press the button – manual recording.
Operation Temperature	-20°C – 70°C (-4°F – 158°F )
Storage Temperature	-20°C – 80°C (-4°F – 176°F )
High Temp Cut Off	Approx. 80 °C (176 °F )
Backup Battery	Built-in supercapacitor
Input Power	DC 12V-24V (3 pole DC Plug(Ø3.5 x Ø1.1) to Wires (Black: GND / Yellow: B+ / Red: ACC)
Power Consumption Hour	Normal Mode (GPS On / 3CH) : Avg. 730mA / 12V Parking Mode (GPS Off / 3CH) : Avg. 610mA / 12V * Approx. 40mA increase in current when Interior Camera IR LEDs are ON. * Approx. 60mA increase in current when Rear Truck Camera IR LEDs are ON. * Actual power consumption may vary depending on use conditions and environment.
Certifications	Front (with Main unit & EB-1) : FCC, IC, CE, UKCA, RCM, Telec, WEEE, RoHS Rear Truck & Interior IR : KC, FCC, IC, CE, UKCA, RCM, WEEE, RoHS
Software	BlackVue Viewer * Windows 7 or higher, Mac Sierra OS X (10.12) or higher BlackVue Web Viewer * Chrome 71 or higher, Safari 13.0 or higher
Application	BlackVue Application * Android 8.0 or higher, iOS 13.0 or higher
Others	Adaptive Format Free File Management System Advanced Driver Assistance System LDWS (Lane Departure Warning System) FVSA (Forward Vehicle Start Alarm)
Bluetooth	Built-in (V2.1+EDR/4.2)
LTE	External (optional)

Recording time

Model	Memory Capacity	Image Quality	Resolution
DR770X Box / DR770X Box Truck			Front: Full HD @60fps \| Rear: Full HD @30fps \| Interior: Full HD @30fps
	64GB	Extreme	3 HR 40 MIN
		Highest	4 HR 20 MIN
		High	4 HR 50 MIN
		Normal	6 HR 10 MIN
		128GB	Extreme	7 HR 20 MIN
	Highest		8 HR 40 MIN
	High		9 HR 40 MIN
	Normal		12 HR 20 MIN
	256GB		Extreme	14 HR 40 MIN
		Highest	17 HR 20 MIN
		High	19 HR 20 MIN
		Normal	24 HR 40 MIN
		Bitrate (Mbps) Front + Rear + Interior	Extreme	16 + 10 + 10
	Highest		12 + 10 + 10
	High		10 + 8 + 8
	Normal		8 + 6 + 6

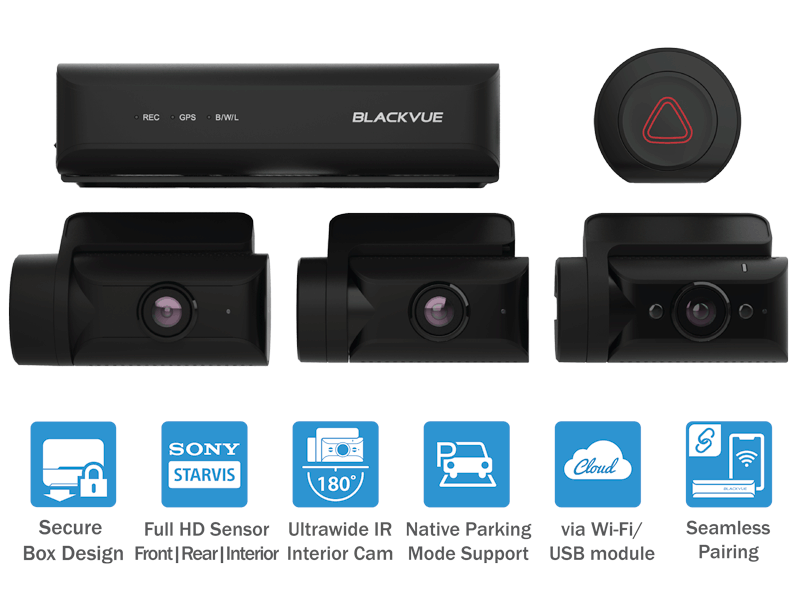

blackvue-dr770x-box-main-features-button-front-view-800×600-1

Seamless Pairing with the BlackVue App

Effortless setup.

With Seamless Pairing, setting up your dashcam is a breeze. Just power the dashcam, then easily connect from the BlackVue app and follow the simple instructions.

Whether you want to browse your dashcam’s files and settings or connect your dashcam to the Cloud, Seamless Pairing makes everything easy and intuitive.

Note: the pairing process uses the SOS Button so make sure you pair the button first, by holding it while the dash cam is powered, until the button blinks red and green.

GPS, Wi-Fi and Optional LTE

GPS: visualize the location of your vehicle on the map during video playback and overlay speed on videos (can be hidden in settings).

Wi-Fi: lets you connect to your BlackVue with a smartphone or tablet. Wi-Fi also lets your BlackVue connect to BlackVue Cloud via any home or mobile Wi-Fi hotspot (router).

LTE: for the best Cloud experience, the included USB Hub lets you connect the optional LTE connectivity module* along with the driver-facing USB camera.

(*) SIM card not included.

Native Parking Mode

Hardwiring cable included
DR750X Plus Series can be hardwired to your vehicle’s fuse panel for Parking Mode, without requiring optional accessories. The dashcam will switch to Parking Mode automatically when vehicle ignition is turned off. Voltage cutoff and timer can be set in the BlackVue App.

Parking Mode accessories support
DR750X Plus Series is also compatible with all BlackVue Parking Mode Kits and Batteries.

Improved Sony STARVIS Sensor

The Sony STARVIS™ image sensor that equips the DR750X Plus Series front and rear cameras delivers outstanding low-light performance.
The back-illuminated sensor is capable of capturing an unprecedented amount of detail in both shadows and highlights.

Check below for a side-by-side comparison between the DR750X Plus and its predecessor the DR750X.

DR750X (Day)

DR750X PLUS (Day)

DR750X (Night)

DR750X PLUS (Night)

Your videos are safe

Event Files Overwrite Protection: dashcams record in a loop, overwriting older files when the memory is full. BlackVue can prevent Event files (triggered manually or by impacts) overwriting. Up to fifty-one (51) files can be protected this way (17 minutes Front/Rear/Interior). You can choose to allow new Event files to overwrite past Event files, thus keeping the latest fifty-one.

Adaptive Format-Free File Management: this BlackVue-developed file system improves recording stability and requires less microSD card formatting.

SD Card Failure Alert: your BlackVue detects as soon as the microSD card fails and warns you with a “Please check SD card” voice alert.

blackvue-dr750x-plus-motion-impact-detection

Built-in Impact & Motion Detection

Automatically tags video files
While driving, the built-in accelerometer (G-sensor) detects impacts and sudden changes in speed. While parked, your BlackVue also detects visual movements around your vehicles.

Use the filters in the BlackVue App and Viewer
BlackVue tags all videos (Normal, Event, Parking Mode, etc.), so that you can filter them and quickly find the ones you need in the BlackVue Viewer (Windows, Mac OS, Web) or the BlackVue App (Android, iOS).

Sleek Interface

Programmable proximity sensor
Toggle audio recording ON and OFF by simply waving your hand in front of it. The sensor can also be configured to trigger Manual Event videos in the settings.

Wi-Fi button
Turn Wi-Fi ON/OFF with the push of a button. All actions are confirmed by a voice prompt.

Secure microSD card access
Unplug the DC in power connector and pop the cover open to reveal the microSD card slot.

High Frame Rate for Extra Fluidity

The advantage of 60FPS video capture

The front camera records extra fluid videos at 60 frames per second, keeping all details sharp even in fast action. With 60fps, motion blur is much reduced compared to 30fps. That means your BlackVue can better capture details–like license plates–even in fast-moving objects.

Note 1: the higher the image quality setting, the higher the bitrate and the bigger the file size. A bigger size will increase the time necessary to transfer a video file over Wi-Fi.

Note 2: Remote Live View using BlackVue Cloud is not affected by the image quality and framerate settings.
