DR970X-1CH Plus
- 4K Ultra HD recording.
- Fast 5GHz Wi-Fi.
- Cloud compatibility via optional LTE Connectivity Module or 3rd-Party Wi-Fi hotspot.
Need built-in LTE? Check out the DR970X-2CH LTE Plus (North America version, Global version).
Spesification
Specifications | |
---|---|
Model Name | DR970X-1CH Plus |
Channel | 1CH |
Highlights | 4K UHD, 2.4-5GHz Wi-Fi, Cloud, External LTE Module (Optional) |
Product Dimensions | Black / 118.6mm(L) x 47.4mm(W) x 36mm(H) / 108g |
Memory Support | microSD card up to 512GB |
Recording Modes | Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected). * When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode. |
Parking Mode | YES (hardwiring cable included) |
Parking Mode Event Voice Notifications | YES |
Imaging Sensor | STARVIS 2 CMOS Sensor (Approx. 8.4 M Pixel) |
Viewing Angle | Diagonal 146°, Horizonal 125°, Vertical 68° |
Resolution Frame Rate | 4K (3840 x 2160) @ 30 fps * Frame rate may vary during Wi-Fi streaming. |
Video Codec | H.265 (HEVC) / H.264 (AVC) |
Image Quality and Bitrate Front/Rear | Highest (Extreme): 60 Mbps Highest: 25 Mbps High: 12 Mbps Normal: 8 Mbps |
Format Free | YES (Adaptive) |
Event File Overwrite Protection | YES (up to 50) |
SD Card Failure Alert | YES |
Scheduled Reboot | YES |
Video File Extension | MP4 |
Wi-Fi | Built-in (802.11 a.b.g.n.ac) |
Cloud Compatible | YES |
GPS | Built-in (Dual Band : GPS, GLONASS) |
Microphone | Built-in |
Speaker | Built-in |
Impact Sensor | 3-Axis Acceleration Sensor |
LED Indicators | Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED |

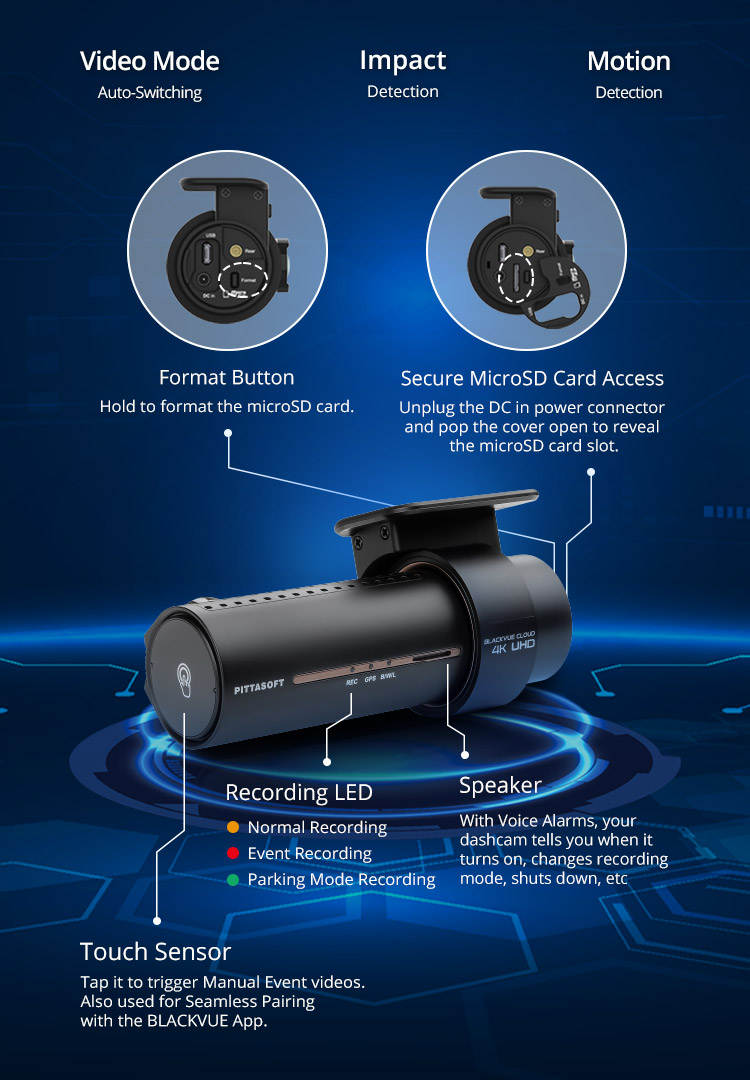

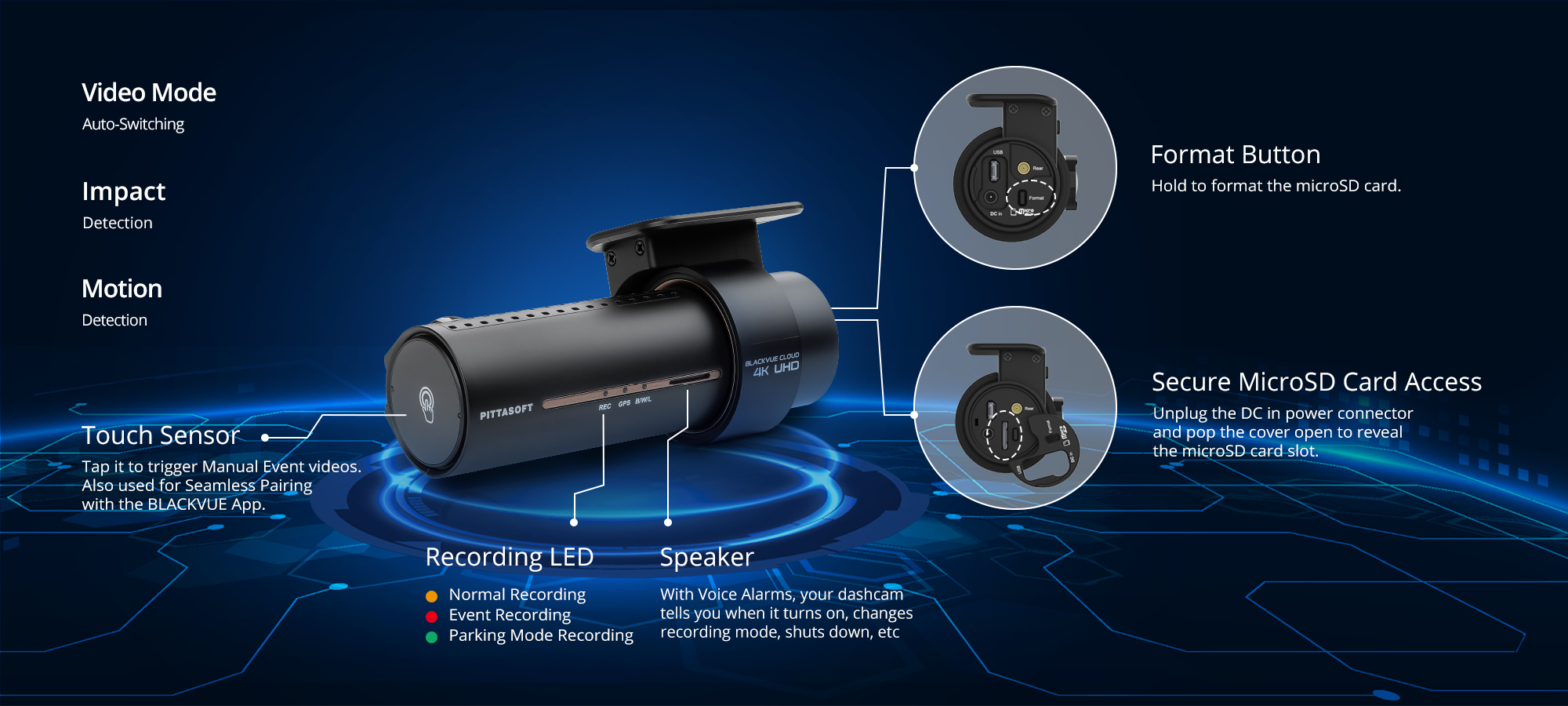

Button | Format Button: Press and hold format button for 5 seconds, and after a beep, release the button. Then, press again and hold for 5 seconds and release the button after a beep to format the microSD card. Touch Sensor: Pressing the touch sensor triggers manual recording depending on the firmware settings. |
Operation Temperature | -20 °C − 70 °C (-4 °F − 158 °F) |
Storage Temperature | -20 °C − 80 °C (-4 °F − 176 °F ) |
High Temp Cut Off | Approx. 75 °C (167 °F) |
Backup Battery | Built-in supercapacitor |
Input Power | DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC) |
Power Consumption Hour | Normal Mode (GPS On/1CH): Avg. 340mA /12V Parking Mode (GPS Off/1CH): Avg. 260mA /12V * Actual power consumption may vary depending on use conditions and environment. |
Certifications | FCC, ISED, CE, UKCA, RCM, RoHS, Telec, WEEE, KC |
Software | BlackVue Viewer * Windows 7 or higher, Mac Sierra OS X (10.12) or higher BlackVue Web Viewer * Chrome 71 or higher, Safari 13.0 or higher |
Application | BlackVue Application
* Android 8.0 or higher, iOS 13.0 or higher |
Others | Adaptive Format-Free File Management System |
Bluetooth | Built-in (V2.1+EDR/4.2) |
LTE | External (Optional) |
Recording time
Model | Memory Capacity | Image Quality | Resolution |
---|---|---|---|
DR970X-1CH Plus | 4K UHD @30fps | ||
64GB | Extreme (H.265) | 2 HR 15 MIN | |
Extreme (H.264) | 3 HR 20 MIN | ||
Highest | 5 HR 15 MIN | ||
High | 10 HR 25 MIN | ||
Normal | 14 HR 50 MIN | ||
128GB | Extreme (H.265) | 4 HR 40 MIN | |
Extreme (H.264) | 6 HR 45 MIN | ||
Highest | 10 HR 35 MIN | ||
High | 20 HR 55 MIN | ||
Normal | 29 HR 50 MIN | ||
256GB | Extreme (H.265) | 9 HR 05 MIN | |
Extreme (H.264) | 13 HR 30 MIN | ||
Highest | 21 HR 15 MIN | ||
High | 41 HR 50 MIN | ||
Normal | 59 HR 45 MIN | ||
512GB | Extreme (H.265) | 18 HR 15 MIN | |
Extreme (H.264) | 27 HR 05 MIN | ||
Highest | 42 HR 30 MIN | ||
High | 83 HR 50 MIN | ||
Normal | 119 HR 35 MIN | ||
Bitrate (Mbps) | Extreme (H.265) | 60 | |
Extreme (H.264) | 40 | ||
Highest | 25 | ||
High | 12 | ||
Normal | 8 |
OUTSTANDING 4K RESOLUTION FAST WI-FI CLOUD
Cloud-Compatible
Built-in GNSS, Wi-Fi and Optional LTE Module
Game-changing
4K visual fidelity
Powered by an 8.4-megapixel Sony STARVIS 2 image sensor
Camera Detail
Front camera:
Sensor: 8.4MP Sony STARVIS 2 CMOS sensor.
Resolution: 4K UHD (3840×2160).
Framerate: 30 frames per second.
Lens: 7 elements, f/1.7.
Diagonal view angle: 146 degrees.
Max bitrate: 60 megabits per second.
Rear camera (optional):
Sensor: 2.1MP Sony STARVIS™ CMOS sensor.
Resolution: Full HD (1920×1080).
Framerate: 30 frames per second.
Lens: 5 elements, f/2.
Diagonal view angle: 131 degrees.
Max bitrate: 10 megabits per second.
Best compression
and high bitrate
Info
H.264 and H.265 Codec Support.
The DR970X Plus Series features H.265, also called High Efficiency Video Coding (HEVC), the leading standard in 4K recording and broadcasting. H.265 ensures the best video quality. The more widely compatible H.264 is also supported.
Higher bitrate for uncompromising video quality.
When using HEVC, the 4K front camera can record at a high bitrate of up to 60 megabits per second, which lets the camera deliver amazing artifact-free image quality in even the most complex fast-moving scenes.
Worried about large files over the Cloud or Wi-Fi?
BlackVue’s Sub-Stream technology embeds Quick Play–under 5MB–versions of the videos in the original files. Quick Play files allow for instant buffer-free playback over the Cloud or a Wi-Fi connection. If needed, you can also play the original full resolution videos for maximum quality.
LTE Connectivity
Module (optional)
Add LTE connectivity to your BlackVue and turn your dash cam into a Wi-Fi hotspot
Info
Easily enable BlackVue Cloud
The CM100G LTE provides easy 4G LTE connectivity to enable BlackVue Cloud features. All you need is a valid Nano SIM card. The CM100G LTE is powered and connects via the USB port of your dashcam.
Unlock Mobile Hotspot Function
Turn your BlackVue into a mobile internet router for up to five devices concurrently. This means you and your passengers can now use your BlackVue’s internet on your laptop, portable game console, tablet or mobile.
To connect to the BlackVue, simply open your devices’ Wi-Fi menu, select the BlackVue and enter the dashcam’s Wi-Fi password.
Note: when purchasing, make sure the CM100G LTE you choose is compatible with your mobile carrier’s network.
