DR770X-2CH DMS

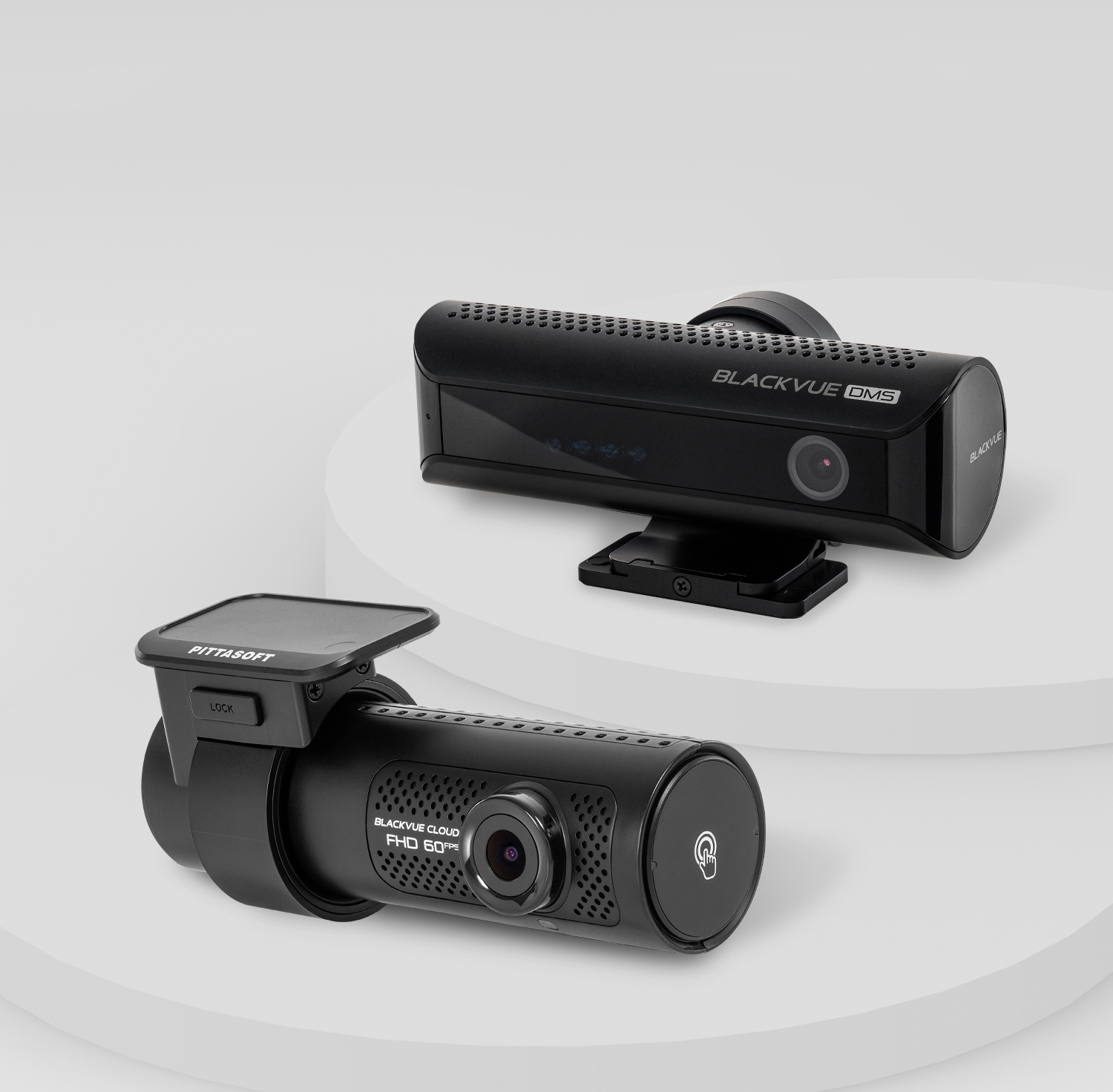

The front camera captures the road at 60 frames per second (139-degree view angle) and the infrared AI-powered DMC200 (115-degree view angle) analyzes and alerts the driver in case of drowsiness or distraction while recording clear videos of the vehicle’s interior.

Both cameras feature Full HD Sony STARVIS™ image sensors for best image quality under any light.

The back-illuminated STARVIS image sensors produce clear details in both shadows and highlights thanks to high sensitivity and wide dynamic range.

Spesification

Tanya Tentang Produk Ini

Specifications
Model Name	DR770X-2CH DMS
Channel	2CH
Highlights	Full HD (Front + Interior), Cloud, Wi-Fi, GPS, Dual Sony Sensors, External LTE Module, AI-powered Driver Monitoring System
Product Dimensions	Front: Diagonal 139°, Horizontal 116°, Vertical 61° DMS: Diagonal 115°, Horizontal 95°, Vertical 49°
Rear Camera Connection	Coaxial cable
Memory Support	microSD card up to 512GB
Recording Modes	Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected) * When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode.
Parking Mode	YES (hardwiring cable included)
Parking Mode Event Voice Notifications	YES
Imaging Sensor	Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel) Interior (DMS): Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
Viewing Angle	Front: Diagonal 139°, Horizontal 116°, Vertical 61° DMS: Diagonal 115°, Horizontal 95°, Vertical 49°
Resolution Frame Rate	Front: Full HD (1920 x 1080) @ 60 fps DMS: Full HD (1920 x 1080) @ 30 fps * Frame rate may vary during Wi-Fi streaming.
Video Codec	H.264 (AVC)
Image Quality and Bitrate Front/Rear	Highest (Extreme): 25+10 Mbps Highest: 12+10 Mbps High: 10+8 Mbps Normal: 8+6 Mbps
Format Free	YES (Adaptive)
Event File Overwrite Protection	YES (up to 50)
SD Card Failure Alert	YES
Scheduled Reboot	YES
Video File Extension	MP4
Wi-Fi	Built-in (802.11 b.g.n)
Cloud Compatible	YES
GPS	Built-in (Dual Band : GPS, GLONASS)
Microphone	Built-in
Speaker	Built-in
Impact Sensor	3-Axis Acceleration Sensor
LED Indicators	Front: Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED DMS: Detection LED (Green / Red / Blue)
Rear Camera IR Illumination	940nm (4 Infrared LEDs)
Button	Front (Touch sensor): Pressing the touch sensor triggers manual recording depending on the firmware settings. DMS (Touch sensor): Press once to turn on/off beep alerts.
Operation Temperature	-20 °C − 70 °C (-4 °F − 158 °F)
Storage Temperature	-20 °C − 80 °C (-4 °F − 176 °F )
High Temp Cut Off	Approx. 75 °C (167 °F)
Backup Battery	Built-in supercapacitor
Input Power	Front: DC 12V-24V (3 pole DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND/Yellow: B+/Red: ACC) DMS: DC 12V –24V (DC Plug: (Ø3.5 x Ø1.35), MAX 1A/12V)
Power Consumption Hour	Normal Mode (GPS On/2CH) : Avg. 570mA/12V Parking Mode (GPS Off/2CH) : Avg. 520mA/12V * Actual power consumption may vary depending on use conditions and environment.
Certifications	Front: FCC, ISED, CE, UKCA, RCM, RoHS, Telec, WEEE, KC DMS: FCC, ISED, CE, UKCA, Telec, RoHS, WEEE
Software	BlackVue Viewer * Windows 7 or higher, Mac Sierra OS X (10.12) or higher BlackVue Web Viewer * Chrome 71 or higher, Safari 13.0 or higher
Application	BlackVue Application * Android 8.0 or higher, iOS 13.0 or higher
Others	Adaptive Format-Free File Management System
Bluetooth	Built-in (V2.1+EDR/4.2)
LTE	External (optional)

Recording time

Model	Memory Capacity	Image Quality	Resolution
DR750X-2CH / DR750X-2CH IR / DR750X-2CH TRUCK / DR750X-2CH Plus / DR750X-2CH IR Plus / DR750X-2CH TRUCK Plus			Full HD @60fps + Full HD @30fps
	16GB	Extreme	55 MIN
		Highest	1 HR 25 MIN
		High	1 HR 50 MIN
		Normal	2 HR 20 MIN
		32GB	Extreme	1 HR 50 MIN
	Highest		2 HR 50 MIN
	High		3 HR 40 MIN
	Normal		4 HR 40 MIN
	64GB		Extreme	3 HR 40 MIN
		Highest	5 HR 40 MIN
		High	7 HR 20 MIN
		Normal	9 HR 20 MIN
		128GB	Extreme	7 HR 20 MIN
	Highest		11 HR 20 MIN
	High		15 HR 40 MIN
	Normal		18 HR 40 MIN
	256GB		Extreme	14 HR 40 MIN
		Highest	22 HR 40 MIN
		High	31 HR 20 MIN
		Normal	37 HR 20 MIN
		Bitrate (Mbps) Front + Rear	Extreme	25 + 10
	Highest		12 + 10
	High		10 + 8
	Normal		8 + 6

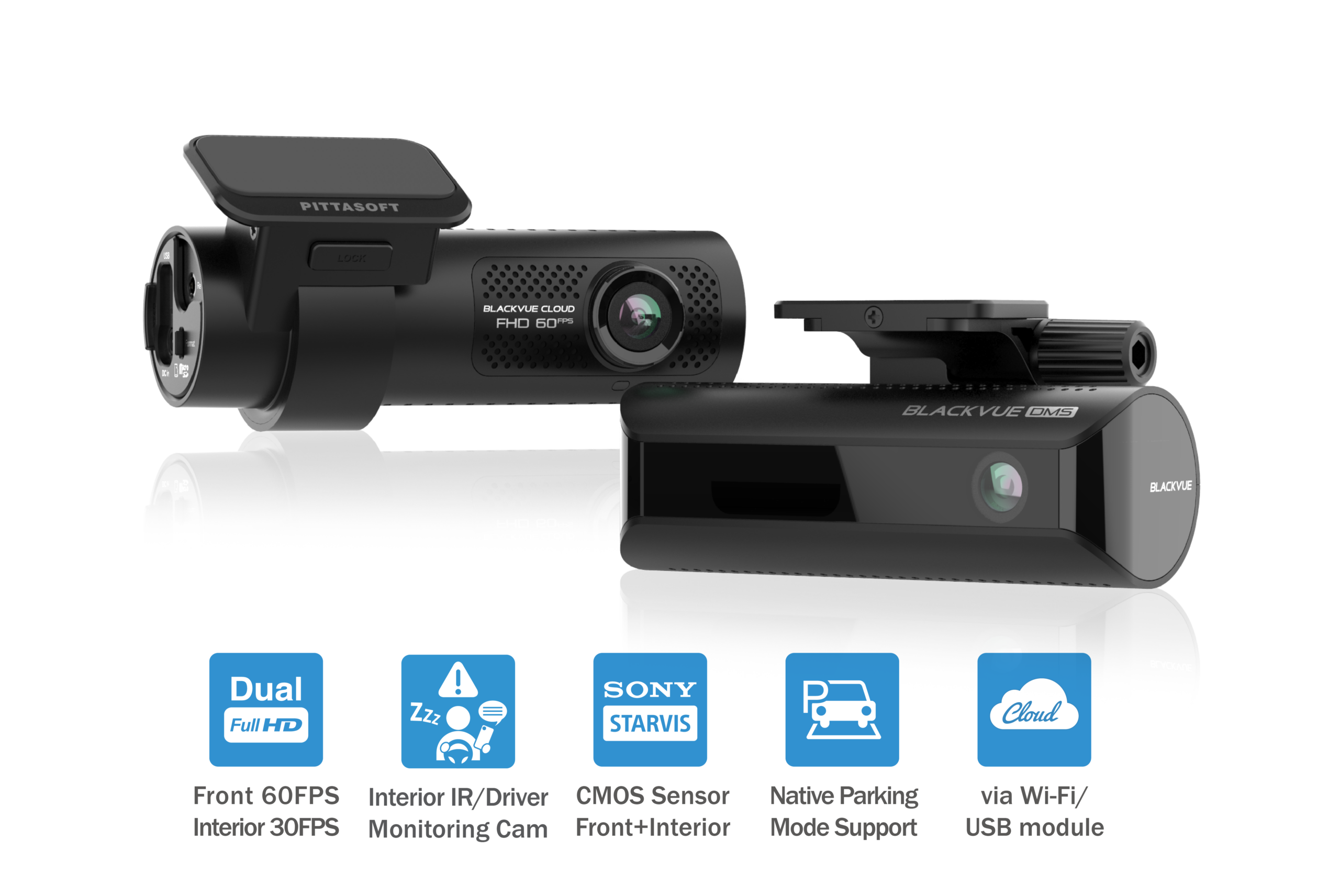

blackvue-dr770x-2ch-dms-main-features-768×576

Feel Safer At The Wheel

Cloud Dashcam and AI-Powered Driver Monitoring System

The DR770X-2CH DMS is a dual-channel dash cam with BlackVue Cloud connectivity and a special-purpose AI-powered Driver Monitoring Camera (DMC200).

driver-monitoring-camera-dmc200-features

AI-Powered Driver-Monitoring Camera

The infrared Driver-Monitoring Camera (DMC200) is designed to improve driver’s safety by helping prevent risky behaviors. Its algorithm can detect statuses such as:

Drowsy driving (with initial and repeated drowsiness warning)
Distracted driving (looking away)
Hand distraction (hands detected near face for an extended period of time)
Driver detected/undetected
Mask on/off

The DMC200 emits beep and LED blinking signals to alert the driver. When connected to BlackVue Cloud, users can receive DMS-specific push notifications and consult “Inattentive driving” reports on the BlackVue App or online at blackvuecloud.com.

AI-specific Driving Reports

View driving behavior trends at a glance

When connected to BlackVue Cloud, the DMC200 generates additional driving report data under the label “Inattentive driving“.

Those can be seen in the BlackVue App under Connect to Cloud > Select your camera > Report tab.
In the BlackVue Web Viewer (blackvuecloud.com), simply click the Report tab.

Daily and monthly data can be displayed.

Native Parking Mode

Hardwiring cable included
DR770X Series can be hardwired to your vehicle’s fuse panel for Parking Mode, without requiring optional accessories. The dashcam will switch to Parking Mode automatically when vehicle ignition is turned off. Voltage cutoff and timer can be set in the BlackVue App.

Parking Mode accessories support
DR770X Series is also compatible with all BlackVue Parking Mode Kits and Batteries.

GPS, Wi-Fi and Optional LTE

GPS: visualize the location of your vehicle on the map during video playback and overlay speed on videos (can be hidden in settings).

Wi-Fi: lets you connect to your BlackVue with a smartphone or tablet. Wi-Fi also lets your BlackVue connect to BlackVue Cloud via any home or mobile Wi-Fi hotspot (router).

LTE: for the best Cloud experience, the included USB Hub lets you connect the optional LTE connectivity module* along with the driver-facing USB camera.

(*) SIM card not included.

Seamless Pairing with the BlackVue App

Effortless setup.

Simply connect to your dashcam without leaving the BlackVue App. With Seamless Pairing, setting up your dashcam is a breeze. Just power the dashcam, then easily connect from the BlackVue app and follow the simple instructions.

Whether you want to browse your dashcam’s files and settings or connect your dashcam to the Cloud, Seamless Pairing makes everything easy and intuitive.

Your videos are safe

Event Files Overwrite Protection: dashcams record in a loop, overwriting older files when the memory is full. BlackVue can prevent Event files (triggered manually or by impacts) overwriting. Up to fifty-one (51) files can be protected this way (17 minutes Front/Rear/Interior). You can choose to allow new Event files to overwrite past Event files, thus keeping the latest fifty-one.

Adaptive Format-Free File Management: this BlackVue-developed file system improves recording stability and requires less microSD card formatting.

SD Card Failure Alert: your BlackVue detects as soon as the microSD card fails and warns you with a “Please check SD card” voice alert.

blackvue-dr750x-plus-motion-impact-detection

Built-in Impact & Motion Detection

Automatically tags video files
While driving, the built-in accelerometer (G-sensor) detects impacts and sudden changes in speed. While parked, your BlackVue also detects visual movements around your vehicles.

Use the filters in the BlackVue App and Viewer
BlackVue tags all videos (Normal, Event, Parking Mode, etc.), so that you can filter them and quickly find the ones you need in the BlackVue Viewer (Windows, Mac OS, Web) or the BlackVue App (Android, iOS).

Set up (easily) and forget

BlackVue dashcams are very easy to install. Attach the front unit to the windshield behind the rear view mirror with the provided double-sided tape.
This way, the dashcam is invisible to the driver’s eye. Simply plug the power cords into the cigarette lighter / accessory power socket of your vehicle and it will automatically start recording as you turn ignition on (no need to push any button).
Once set, you can forget about it, knowing it will reliably record your drive.

BlackVue X Series Basic Installation

BlackVue X Series Hardwired Installation

BlackVue Cloud Guide

Sleek Interface

Programmable proximity sensor
Toggle audio recording ON and OFF by simply waving your hand in front of it. The sensor can also be configured to trigger Manual Event videos in the settings.

Wi-Fi button
Turn Wi-Fi ON/OFF with the push of a button. All actions are confirmed by a voice prompt.

Secure microSD card access
Unplug the DC in power connector and pop the cover open to reveal the microSD card slot.

blackvue-app-viewer-mac-windows-web-1920×960-1-2-2_orig

BlackVue App (iOS, Android) and Viewer (Windows/Mac/Web)

Easily manage your video files

Easily change your BlackVue configuration settings and browse your videos on your mobile or computer.

With the BlackVue App, connect to your BlackVue to access files and check real-time Live View for easy setup of your dashcam.
With the SD Card Viewer, connect your dashcam’s microSD card to your computer to view and backup footage in bulk, as well as export clips, remove sound, etc.

The Web Viewer lets you manage your Cloud-connected dashcams from any web browser at blackvuecloud.com.

High Frame Rate for Extra Fluidity

The advantage of 60FPS video capture

The front camera records extra fluid videos at 60 frames per second, keeping all details sharp even in fast action. With 60fps, motion blur is much reduced compared to 30fps. That means your BlackVue can better capture details–like license plates–even in fast-moving objects.

Note 1: the higher the image quality setting, the higher the bitrate and the bigger the file size. A bigger size will increase the time necessary to transfer a video file over Wi-Fi.

Note 2: Remote Live View using BlackVue Cloud is not affected by the image quality and framerate settings.
