DR590W-2CH IR DR590-2CH IR2018-06-07T16:17:07+00:00

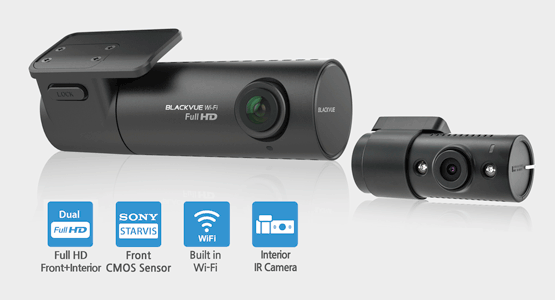

DUAL FULL HD TAXI DASHCAM

FULL HD 1080P FRONT AND INTERIOR @30FPS

STARVIS image sensor (front camera) for awesome image clarity day and night.
The interior infrared camera records clear videos even in complete darkness thanks to its discreet infrared illumination LEDs.

BUILT-IN WI-FI (DR590W-2CH IR)
Connect to your dash​cam with the BlackVue App to adjust settings, check the view from the front and rear cameras or transfer files to your mobile device.

STARVIS is a trademark of Sony Corporation.

Your Content Goes Here

Your Content Goes Here

DR590W-2CH IR Specifications

Model Name DR590W-2CH IRLED IndicatorsFront: Front Security, REC (Red), GPS (Blue), Wi-Fi (White)
Rear: Rear Security LED
Color/Size/WeightFront: Black / Width 111.8 mm x Height 34 mm / 64 g
Rear: Black / Width 67.4 mm x Height 25 mm / 21 g
Wavelength of Interior
camera IR light
940 nm (2 Infrared (IR) LEDs)
MemorymicroSD Card (16 GB/32 GB/64 GB/128 GB)ButtonShort press: Wi-Fi on/off
Press and hold: Format microSD card
Recording ModesNormal Recording, Event Recording (when impact is detected in normal and parking mode) and Parking recording (when motion is detected)
* For parking mode recording, a Parking Mode Battery Pack (Power Magic Battery Pack) or a Parking Mode Hardwiring Kit (Power Magic Pro) is required.
Sensor3-Axis Acceleration Sensor
Backup BatteryBuilt-in super capacitor
CameraFront: STARVIS™ CMOS Sensor (Approx. 2.1 megapixels)
Rear: CMOS Sensor (Approx. 2 megapixels)
Input PowerDC 12V – 24V (DC Plug: (Ø3.5 x Ø1.35), MAX 1A/12V)
Viewing AngleFront: Diagonal 139°, Horizontal 116°, Vertical 61°
Rear: Diagonal 140°, Horizontal 115°, Vertical 60°
Power ConsumptionAvg. 300mA (3.60W at 12V, when Wi-Fi is off and no external GPS receiver is connected)
Avg. 350mA (4.20W at 12V, when Wi-Fi is on and an external GPS receiver is connected)* Approx. 60mA increase in current when IR LEDs are ON.
* Actual power consumption may vary depending on use conditions and environment.
Resolution/Frame RateFull HD (1920×1080) @ 30 fps – Full HD (1920×1080) @ 30 fps
Full HD (1920×1080) @ 30 fps – HD (1280×720) @ 30 fps
HD (1280×720) @ 30 fps – HD (1280×720) @ 30 fps
Operation Temperature-20 °C – 70 °C (-4 °F – 158 °F)
Image QualityHighest/High/NormalStorage Temperature-20 °C – 80 °C (-4 °F – 176 °F)
Video Compression ModeMP4High Temp. Cut-Off Approx. 70 °C (158 °F)
Wi-FiBuilt-in (802.11n (2.4 − 2.4835 GHz))CertificationsFCC, CE, RoHS, Telec, WEEE, IC
GPSExternal (Optional)SoftwareBlackVue Viewer
* Windows XP or higher and Mac Yosemite OS X (10.10) or higher
MicrophoneBuilt-inApplicationBlackVue Application (Android 4.4.2 or higher, iOS 9.0 or higher)
Speaker (Voice Guidance)Built-inOther FeaturesAdaptive Format Free File Management System

DR590-2CH IR Specifications

Model Name DR590-2CH IRLED IndicatorsFront: Front Security, REC (Red), GPS (Blue)
Rear: Rear Security LED
Color/Size/WeightFront: Black / Width 111.8 mm x Height 34 mm / 63 g
Rear: Black / Width 67.4 mm x Height 25 mm / 21 g
Wavelength of Interior
camera IR light
940 nm (2 Infrared (IR) LEDs)
MemorymicroSD Card (16 GB/32 GB/64 GB/128 GB)ButtonShort press: Mic on/off
Press and hold: Format microSD card
Recording ModesNormal Recording, Event Recording (when impact is detected in normal and parking mode) and Parking recording (when motion is detected)
* For parking mode recording, a Parking Mode Battery Pack (Power Magic Battery Pack) or a Parking Mode Hardwiring Kit (Power Magic Pro) is required.
Sensor3-Axis Acceleration Sensor
Backup BatteryBuilt-in super capacitor
CameraFront: STARVIS™ CMOS Sensor (Approx. 2.1 megapixels)
Rear: CMOS Sensor (Approx. 2 megapixels)
Input PowerDC 12V – 24V (DC Plug: (Ø3.5 x Ø1.35), MAX 1A/12V)
Viewing AngleFront: Diagonal 139°, Horizontal 116°, Vertical 61°
Rear: Diagonal 140°, Horizontal 115°, Vertical 60°
Power ConsumptionAvg. 290mA (3.48W at 12V, when Wi-Fi is off and no external GPS receiver is connected)
Avg. 310mA (3.84W at 12V, when Wi-Fi is on and an external GPS receiver is connected)
* Approx. 60mA increase in current when IR LEDs are ON.
* Actual power consumption may vary depending on use conditions and environment.
Resolution/Frame RateFull HD (1920×1080) @ 30 fps – Full HD (1920×1080) @ 30 fps
Full HD (1920×1080) @ 30 fps – HD (1280×720) @ 30 fps
HD (1280×720) @ 30 fps – HD (1280×720) @ 30 fps
Operation Temperature-20 °C – 70 °C (-4 °F – 158 °F )
Image Quality Highest/High/NormalStorage Temperature-20 °C – 80 °C (-4 °F – 176 °F)
Video Compression ModeMP4High Temp. Cut-Off Approx. 70 °C (158 °F )
GPS External (Optional)CertificationsFCC, CE, RoHS
MicrophoneBuilt-inSoftwareBlackVue Viewer
* Windows XP or higher and Mac Yosemite OS X (10.10) or higher
Speaker (Voice Guidance)Built-inOther Features Adaptive Format Free File Management System

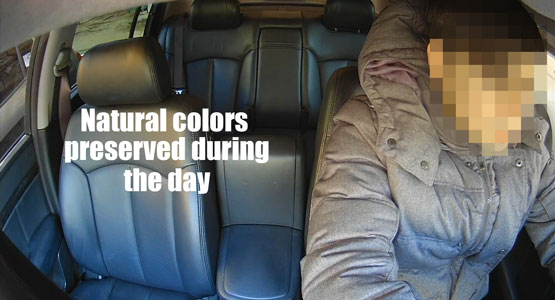

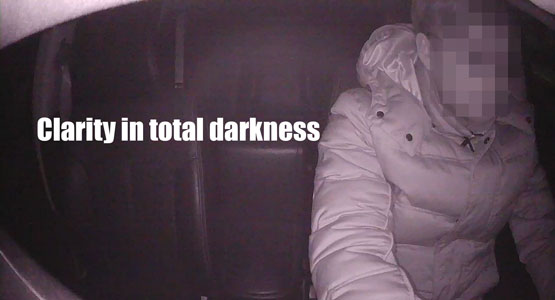

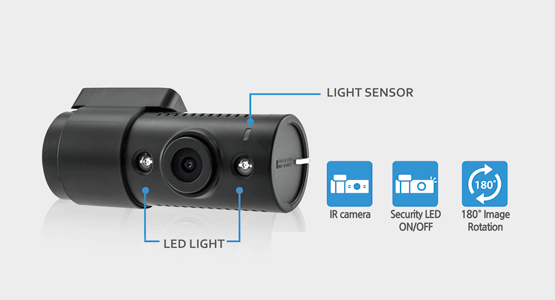

INFRARED INTERIOR CAMERA

CLARITY IN COMPLETE DARKNESS

The Infrared Camera secures the interior of your vehicle. The inconspicuous infrared LEDs automatically activate based on the ambient light.

The camera’s spectacular clarity even in pitch black lighting conditions will procure peace of mind to taxi and rideshare drivers.

Using the BlackVue App or Viewer, you can further customize the way it operates.

•    180° Image Rotation to accommodate your setup: if the image comes out upside down, just activate this feature and it will fix the image                           orientation.
•   Security LED ON/OFF (for stealth in Parking Mode)

BUILT-IN IMPACT & MOTION DETECTION

ENABLES MULTIPLE RECORDING MODES

While driving, your BlackVue detects impacts and sudden changes in speed. While parked, it also detects movements*.

Videos files are marked accordingly so that you can easily find the relevant ones in the BlackVue Viewer for Windows and Mac OS or the BlackVue App for iOS and Android.

(*) For Parking Mode recording, an external battery pack (Power Magic Battery Pack) or a hardwiring kit (Power Magic Pro) is required.

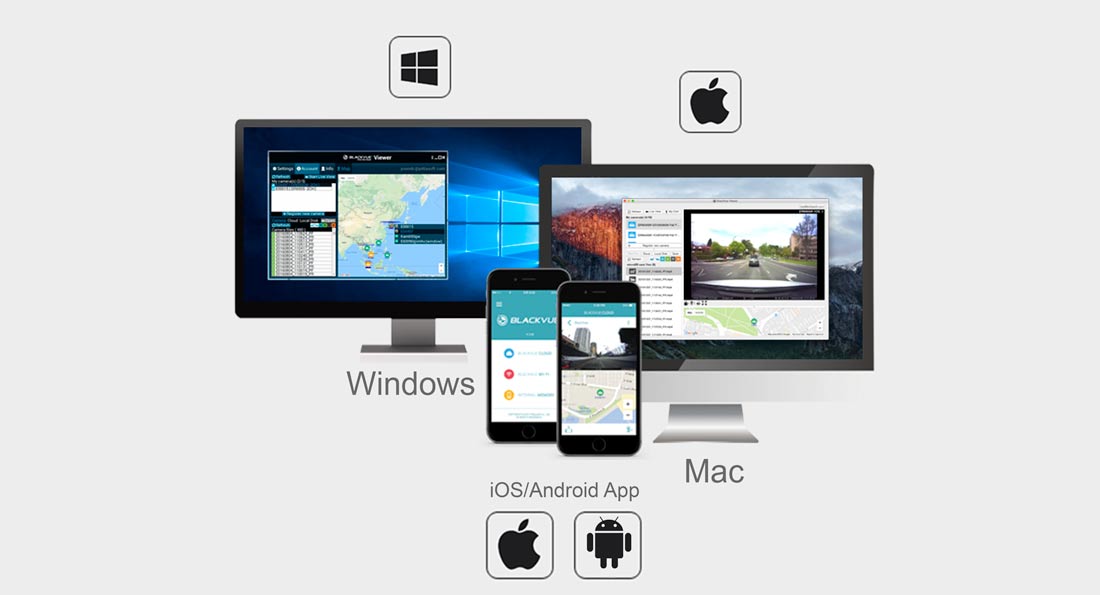

BLACKVUE APP (IOS/ANDROID) AND VIEWER (WINDOWS/MAC)

EASILY MANAGE YOUR SETTINGS AND VIDEO FILES

Both the BlackVue App and Viewer are free to download and use.

They let you easily change your BlackVue configuration settings and browse through your videos in an intuitive way.

With the BlackVue App, connect to your BlackVue in Wi-Fi (DR590W-2CH IR only) to access files and check real-time Live View for easy setup and positioning of your dash​cam. In case of an accident, download the video proof on your mobile and visualize it on the spot.

LOOP RECORDING AND ADAPTIVE FORMAT-FREE TECHNOLOGY

LESS FORMATTING AND SMOOTHER RECORDING

Loop Recording: your BlackVue records over the oldest video files first when the microSD card is full, in a seamless loop.

Adaptive Format-Free Technology: your BlackVue saves and organizes files on the microSD card in a highly efficient way. It reduces the need for formatting the card and prevents file corruption even after multiple write cycles.

EXTERNAL GPS (OPTIONAL)

LOG SPEED AND LOCATION ALONG YOUR VIDEOS

The external GPS receiver (approx. 1 meter / 39 inches) adds location and speed data to your videos.

Speed: speed data will be overlaid in the video (can be turned off in the settings).
You can choose to display the speed in Kilometers per hour (Km/h) or Miles per hour (Mph).

Location: you can visualize the location of your vehicle in the BlackVue Viewer’s Map during video playback.

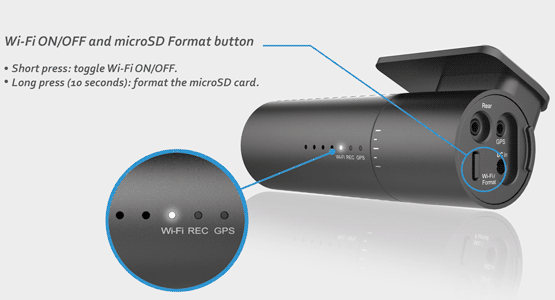

WI-FI ON/OFF AND FORMAT BUTTON

The DR590W-2CH IR features a physical button to toggle Wi-Fi ON and OFF with a short press.

Additionally, you can configure the Wi-Fi activation behavior in the settings (Auto Turn On, Auto Turn Off).

A long press of the button can also be used to format the microSD card without the need for a computer.

Note: on the DR590-2CH IR (non-Wi-Fi) model, the Wi-Fi On/Off function is replaced by Mic On/Off, which toggles audio recording.

THE SONY STARVIS DIFFERENCE

The Sony STARVIS™ image sensor that equips the front camera of the DR590W-2CH IR/DR590-2CH IR delivers outstanding low-light performance.

Additionally, it features Night Vision, which can be activated from the settings, further enhancing details in dark surroundings.

Even with Night Vision OFF, the STARVIS sensor outperforms regular CMOS sensors as you can see in the comparison shots below:

PARKING MODE MONITORING

with Power Magic Pro or Power Magic Battery Pack.

Rest easy, knowing that your car is being monitored while you are away.

BlackVue automatically switches to Parking Mode to monitor you parked vehicle, but only writes to the memory card when something happens (motion or impact detected), which has two benefits:

Less chance for important files to be overwritten during long Parking Mode sessions.
Extended memory card lifespan in the long run.
The dashcam detects movements via the camera sensor and impacts via the gravity sensor. You can choose to record videos in either both scenarios or only when impacts are detected.

Scheduled Reboot:

Electronic recording devices can benefit from restarting between long recording sessions. When hardwiring a dash​cam for Parking Mode, it may stay on for days. In some extreme cases, unexpected errors can occur. To avoid this, the DR590W and DR590 Series feature the option to schedule a daily automatic reboot (by default in the middle of night) to minimize potential errors.

Reboots can happen only when the dash​cam is in Parking Mode and not writing any data to the microSD card. This means no Normal driving, Event, or Parking Mode recording will be interrupted by a scheduled reboot.
