DR970X-2CH Plus
4K Ultra HD front and Full HD rear.
Fast 5GHz Wi-Fi.
Cloud compatibility via optional LTE Connectivity Module or 3rd-Party Wi-Fi hotspot.
Spesification
| Specifications | |
|---|---|
| Model Name | DR970X-2CH Plus |
| Channel | 2CH |
| Highlights | 4K UHD (Front) + Full HD (Rear), 2.4-5GHz Wi-Fi, Cloud, External LTE Module (Optional) |
| Product Dimensions | Front: Black / 118.6mm(L) x 47.4mm(W) x 36mm(H) / 115g Rear: Black / 67.3mm(L) x 28mm(W) x 25mm(H) / 25g |
| Rear Camera Connection | Coaxial cable |
| Memory Support | microSD card up to 1TB |
| Recording Modes | Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected). * When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode. |
| Parking Mode | YES (hardwiring cable included) |
| Parking Mode Event Voice Notifications | YES |
| Imaging Sensor | Front: STARVIS 2 CMOS Sensor (Approx. 8.4 M Pixel) Rear: STARVISTM CMOS Sensor (Approx. 2.1 M Pixel) |
| Viewing Angle | Front: Diagonal 146°, Horizonal 125°, Vertical 68° Rear: Diagonal 131°, Horizonal 107°, Vertical 55° |
| Resolution Frame Rate | Front: 4K (3840 x 2160) @ 30 fps Rear: Full HD (1920 x 1080) @ 30 fps * Frame rate may vary during Wi-Fi streaming. |
| Video Codec | H.265 (HEVC) / H.264 (AVC) |
| Image Quality and Bitrate Front/Rear | Highest (Extreme): 60+10 Mbps Highest: 25+10 Mbps High: 12+8 Mbps Normal: 8+6 Mbps*60Mbps bitrates only support in H.265(HEVC). |
| Format Free | YES (Adaptive) |
| Event File Overwrite Protection | YES (up to 50) |
| SD Card Failure Alert | YES |
| Scheduled Reboot | YES |
| Video File Extension | MP4 |
| Wi-Fi | Built-in (802.11 a.b.g.n.ac) |
| Specifications | |
|---|---|
| Cloud Compatible | YES |
| GPS | Built-in (Dual Band : GPS, GLONASS) |
| Microphone | Built-in |
| Speaker | Built-in |
| Impact Sensor | 3-Axis Acceleration Sensor |
| LED Indicators | Front: Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED Rear: Rear Security LED |

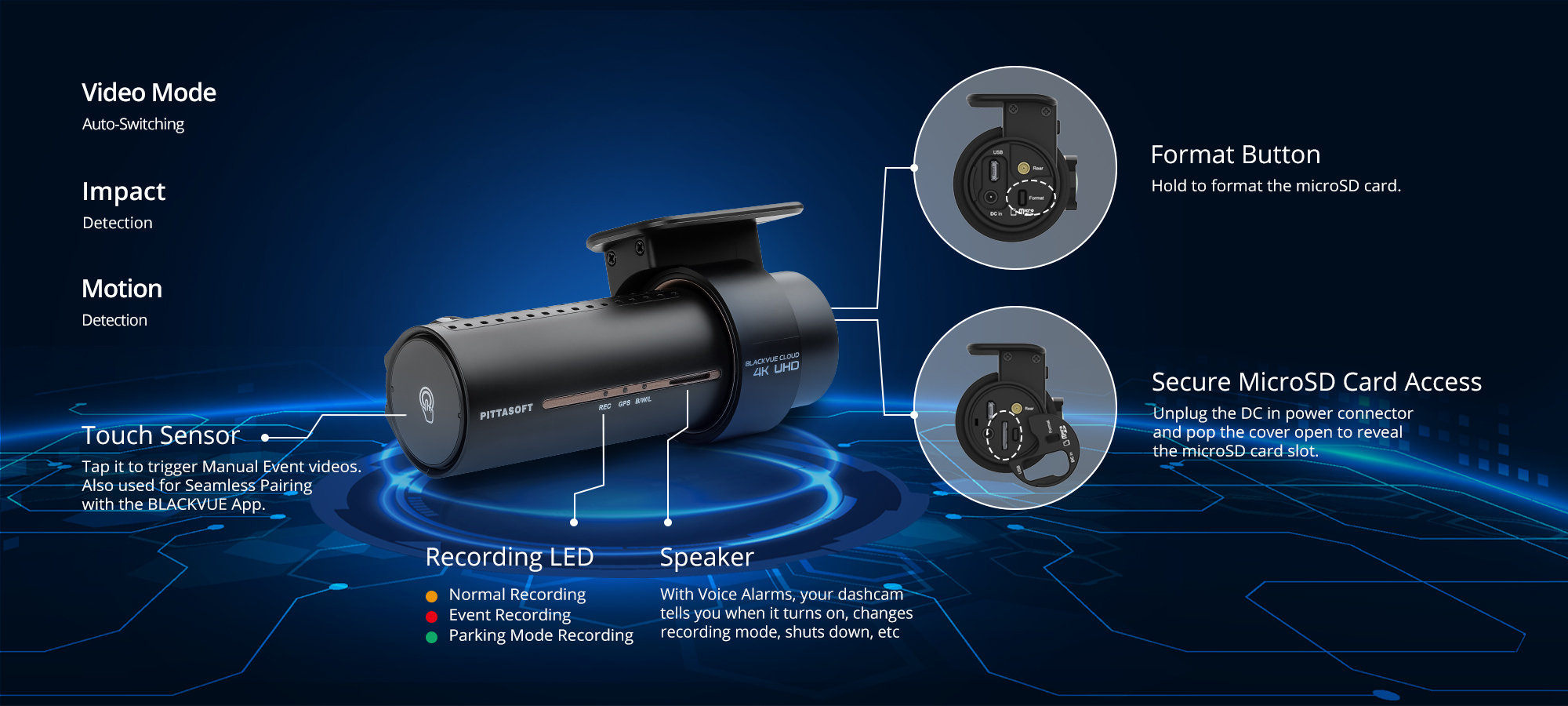

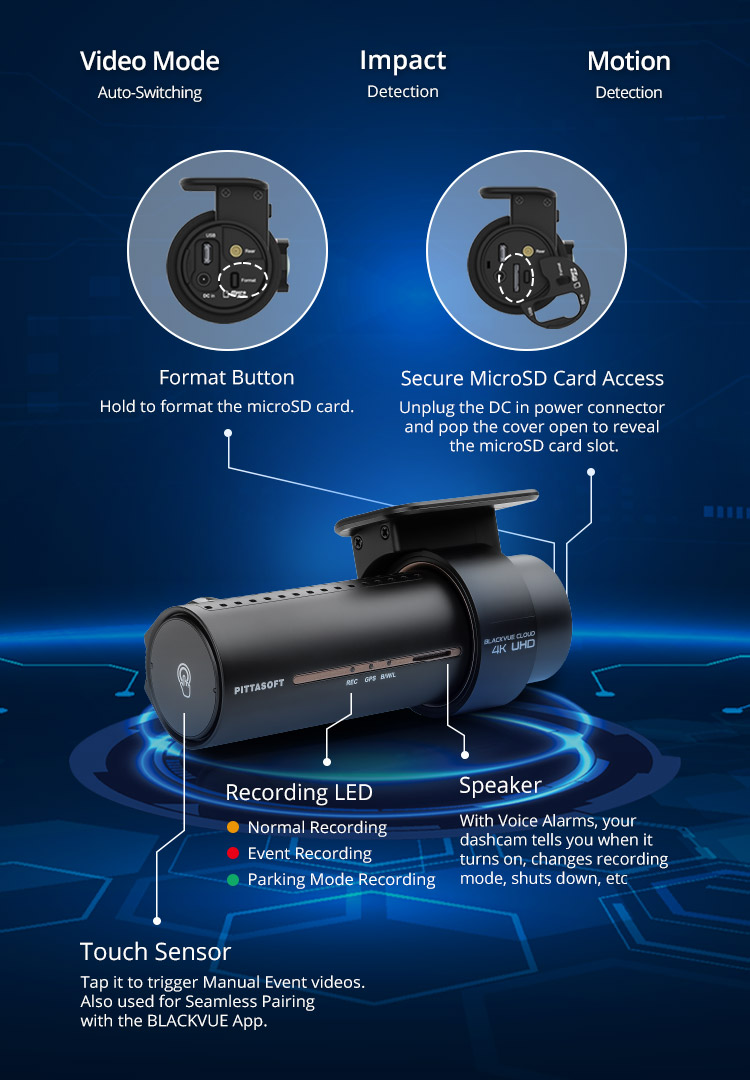

| Button | Format Button: Press and hold format button for 5 seconds, and after a beep, release the button. Then, press again and hold for 5 seconds and release the button after a beep to format the microSD card. Touch Sensor: Pressing the touch sensor triggers manual recording depending on the firmware settings. |
| Operation Temperature | -20 °C − 70 °C (-4 °F − 158 °F) |
| Storage Temperature | -20 °C − 80 °C (-4 °F − 176 °F ) |
| High Temp Cut Off | Approx. 75 °C (167 °F) |
| Backup Battery | Built-in supercapacitor |
| Input Power | DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC) |
| Power Consumption Hour | Normal Mode (GPS On/2CH): Avg. 480mA /12V Parking Mode (GPS Off/2CH): Avg. 370mA /12V* Actual power consumption may vary depending on use conditions and environment. |
| Certifications | Front : FCC, ISED, CE, UKCA, RCM, RoHS, Telec, WEEE, KC Rear : FCC, ISED, CE, UKCA, RCM, RoHS, WEEE, KC |
| Software | BlackVue Viewer * Windows 7 or higher, Mac Sierra OS X (10.12) or higher BlackVue Web Viewer * Chrome 71 or higher, Safari 13.0 or higher |
| Application | BlackVue Application * Android 8.0 or higher, iOS 13.0 or higher |
| Others | Adaptive Format-Free File Management System |
| Bluetooth | Built-in (V2.1+EDR/4.2) |
| LTE | External (Optional) |
