blackvue-dr970x-2ch-ir-plus-main-features

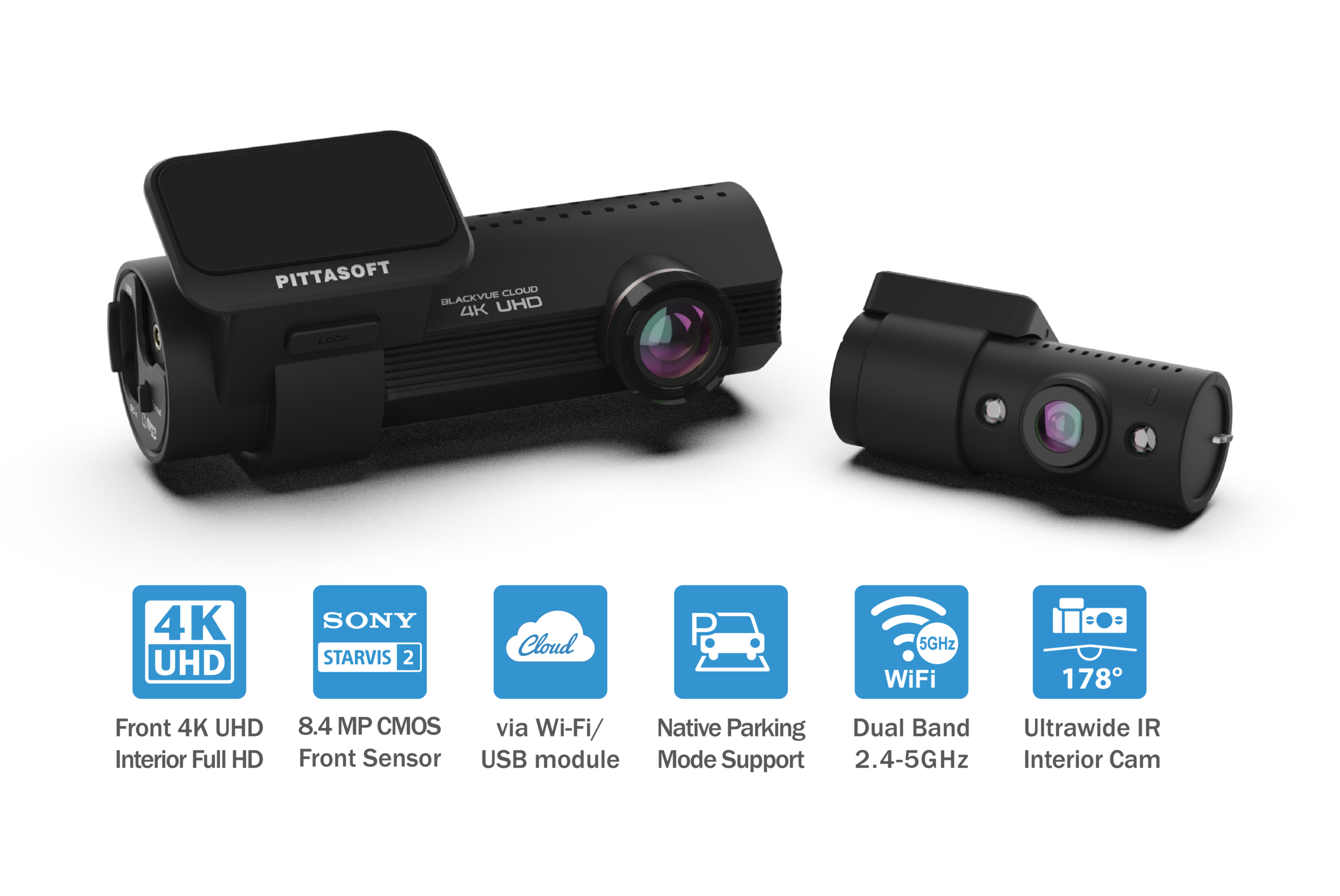

DR970X-2CH IR Plus 4K UHD

Model with infrared (IR) driver-facing camera The front camera of DR970X-2CH IR Plus records the road ahead in 4K UHD, while the driver-facing IR (infrared) camera captures every detail of the interior, even in pitch black lighting conditions.

4K Ultra HD front camera.Full HD
178-degree driver-facing infrared camera.
Fast 5GHz Wi-Fi.
Cloud compatibility via optional LTE Connectivity Module or 3rd-Party Wi-Fi hotspot.

Specifications
Model Name	DR970X-2CH IR Plus
Channel	2CH
Highlights	4K UHD (Front) + Full HD (Interior), 2.4-5GHz Wi-Fi, Cloud, External LTE Module (Optional)
Product Dimensions	Front: Black / 118.6mm(L) x 47.4mm(W) x 36mm(H) / 115g Interior: Black / 67.3mm(L) x 28mm(W) x 25mm(H) / 27g
Rear Camera Connection	Coaxial cable
Memory Support	microSD card up to 512GB
Recording Modes	Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected). * When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode.
Parking Mode	YES (hardwiring cable included)
Parking Mode Event Voice Notifications	YES
Imaging Sensor	Front: STARVIS 2 CMOS Sensor (Approx. 8.4 M Pixel) Rear: STARVISTM CMOS Sensor (Approx. 2.1 M Pixel
Viewing Angle	Front: Diagonal 146°, Horizonal 125°, Vertical 68° Interior: Diagonal 178°, Horizonal 150°, Vertical 80°
Resolution Frame Rate	Front: 4K (3840 x 2160) @ 30 fps Interior: Full HD (1920 x 1080) @ 30 fps * Frame rate may vary during Wi-Fi streaming.
Video Codec	H.265 (HEVC) / H.264 (AVC)
Image Quality and Bitrate Front/Rear	Highest (Extreme): 60+10 Mbps Highest: 25+10 Mbps High: 12+8 Mbps Normal: 8+6 Mbps
Format Free	YES (Adaptive)
Event File Overwrite Protection	YES (up to 50)
SD Card Failure Alert	YES
Scheduled Reboot	YES
Video File Extension	MP4
Wi-Fi	Built-in (802.11 a.b.g.n.ac)
Cloud Compatible	YES
GPS	Built-in (Dual Band : GPS, GLONASS)

Specifications
Microphone	Built-in
Speaker	Built-in
Impact Sensor	3-Axis Acceleration Sensor
LED Indicators	Front: Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED Interior: Rear Security LED
Rear Camera IR Illumination	940nm (2 Infrared (IR) LEDS)
Button	Format Button: Press and hold format button for 5 seconds, and after a beep, release the button. Then, press again and hold for 5 seconds and release the button after a beep to format the microSD card. Touch Sensor: Pressing the touch sensor triggers manual recording depending on the firmware settings.
Operation Temperature	-20 °C − 70 °C (-4 °F − 158 °F)
Storage Temperature	-20 °C − 80 °C (-4 °F − 176 °F )
High Temp Cut Off	Approx. 75 °C (167 °F)
Backup Battery	Built-in supercapacitor
Input Power	DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC)
Power Consumption Hour	Normal Mode (GPS On/2CH): Avg. 480mA / 12V Parking Mode (GPS Off/2CH): Avg. 370mA / 12V * Approx. 40mA increase in current when IR LEDs are ON. * Actual power consumption may vary depending on use conditions and environment.
Certifications	Front : FCC, ISED, CE, UKCA, RCM, RoHS, Telec, WEEE, KC Rear : FCC, ISED, CE, UKCA, RCM, RoHS, WEEE, KC
Software	BlackVue Viewer * Windows 7 or higher, Mac Sierra OS X (10.12) or higher BlackVue Web Viewer * Chrome 71 or higher, Safari 13.0 or higher
Application	BlackVue Application * Android 8.0 or higher, iOS 13.0 or higher
Others	Adaptive Format-Free File Management System
Bluetooth	Built-in (V2.1+EDR/4.2)
LTE	External (Optional)

DR970X-2CH IR Plus 4K UHD

Model with infrared (IR) driver-facing camera The front camera of DR970X-2CH IR Plus records the road ahead in 4K UHD, while the driver-facing IR (infrared) camera captures every detail of the interior, even in pitch black lighting conditions.

- - - 4K Ultra HD front camera.
    - Full HD 178-degree driver-facing infrared camera.
    - Fast 5GHz Wi-Fi.
    - Cloud compatibility via optional LTE Connectivity Module or 3rd-Party Wi-Fi hotspot.
