BlackVue DR770X Box-3CH Truck Pro

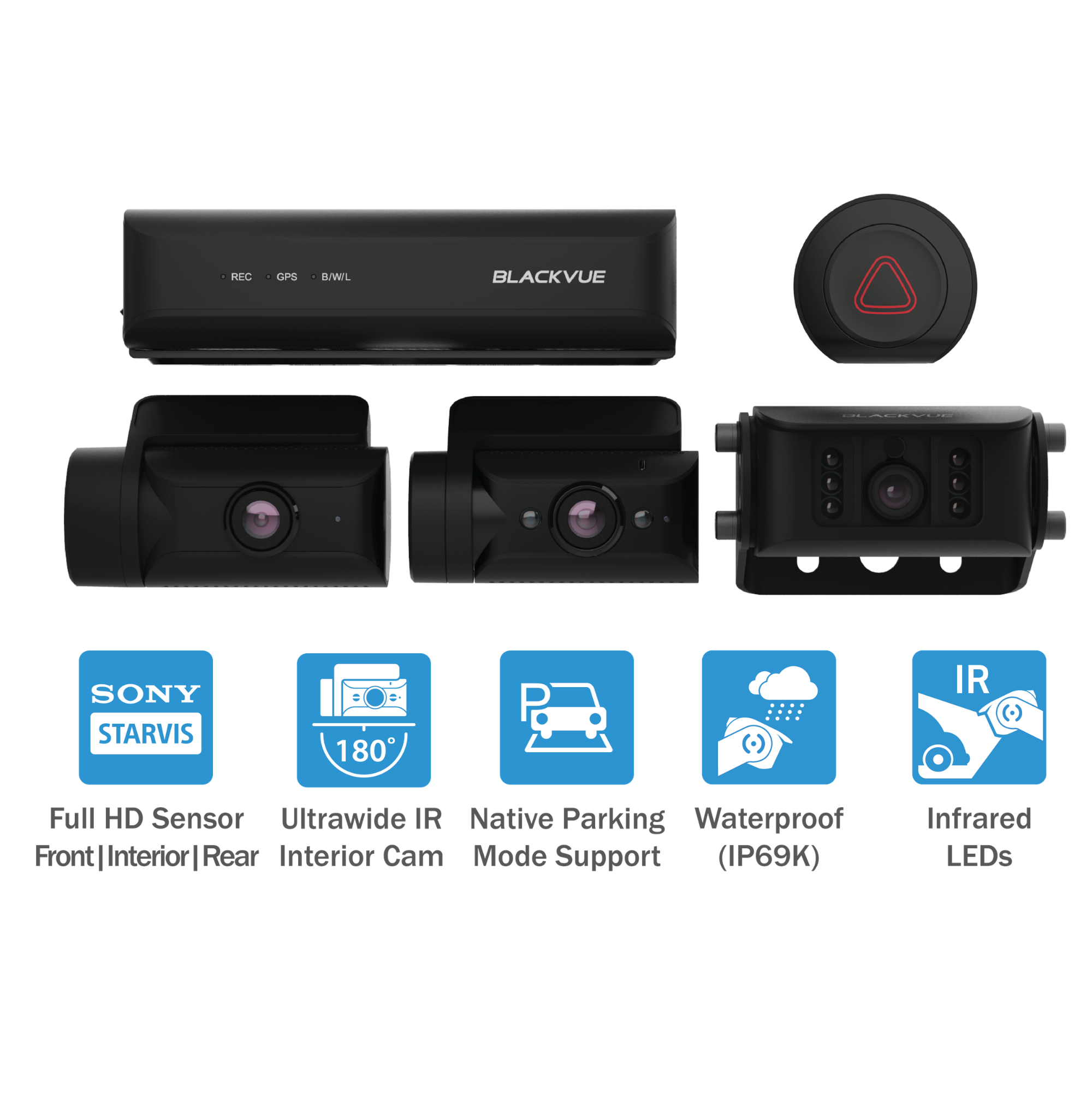

BlackVue DR770X Box-3CH Truck Pro features front, rear and interior protection for your vehicle, powered by Sony image sensors for best image quality under any light. Features an external waterproof (IP69K) infrared rear camera and 15m / 49ft video cable. Also included are GPS logger, Wireless Button, built-in Wi-Fi, Cloud connectivity and built-in voltage monitoring for Parking Mode.
Spesification
| Specifications | |
|---|---|
| Model Name | DR770X Box-3CH Truck Pro |
| Channel | 3CH |
| Highlights | Full HD + Full HD + Full HD (Front + Rear + Interior), Cloud, Wi-Fi, Triple Sony Sensors, External GPS and LTE Module |
| Product Dimensions | Main unit : Black / Length 135.0 mm x Width 101.0 mm x Height 37.5 mm / 225 g Front : Black / Length 77.5 mm x Width 34 mm x Height 49.5 mm / 61 g Interior IR : Black / Length 69.5 mm x Width 32.0 mm x Height 48.3 mm / 47 g Rear Truck : Black / Length 81mm x Width 56.6 mm x Height 51 mm / 220g Wireless Button : Black / Length 45.2 mm x Width 42.0 mm x Height 14.5 mm / 23 g |
| Rear Camera Connection | Coaxial cable |
| Memory Support | microSD card up to 512GB |
| Recording Modes | Normal recording, Event recording (when the impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected) * When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode. |
| Parking Mode | YES (hardwiring cable included) |
| Parking Mode Event Voice Notifications | YES |
| Imaging Sensor | Front: STARVIS CMOS Sensor (Approx. 2.1 M Pixel) Interior IR: STARVIS CMOS Sensor (Approx. 2.1 M Pixel) Rear Truck: STARVIS CMOS Sensor (Approx. 2.1 M Pixel) |
| Viewing Angle | Front(FC1) : Diagonal 139°, Horizontal 116°, Vertical 61° Interior IR(RC1-IR-C) : Diagonal 180°, Horizontal 150°, Vertical 93° Rear Truck(ERC-1C) : Diagonal 116°, Horizontal 97°, Vertical 51° |
| Resolution Frame Rate | Front / Interior IR / Rear Truck Full HD (1920×1080) @ 60 fps – Full HD (1920×1080) @ 30 fps- Full HD (1920×1080) @ 30 fps |
| Video Codec | H.264 (AVC) |
| Image Quality and Bitrate Front/Rear | Front / Interior IR / Rear Truck Extreme: 16 + 10 + 10 Mbps Highest: 12 + 10 + 10 Mbps High: 10 + 8 + 8 Mbps Normal: 8 + 6 + 6 Mbps |
| Format Free | YES (Adaptive) |
| Event File Overwrite Protection | YES (up to 51) |
| Specifications | |
|---|---|
| SD Card Failure Alert | YES |
| Scheduled Reboot | YES |
| Video File Extension | MP4 |
| Wi-Fi | Built-in (802.11 b.g.n) |
| Cloud Compatible | YES |
| GPS | External (Dual Band : GPS, GLONASS) |
| Microphone | Built-in |
| Speaker | Built-in |
| Impact Sensor | 3-Axis Acceleration Sensor |
| LED Indicators | Main unit: Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED Front: Front & Rear Security LED Interior IR: Front & Rear Security LED Rear Truck: None EB-1: Operating / Battery low voltage LED |
| Rear Camera IR Illumination | Interior IR: 940nm (2 Infrared (IR) LEDs) Rear Truck: 940nm (6 Infrared (IR) LEDs) |
| Button | EB-1 button : Press the button – manual recording. |
| Operation Temperature | -20°C – 70°C (-4°F – 158°F ) |
| Storage Temperature | -20°C – 80°C (-4°F – 176°F ) |
| High Temp Cut Off | Approx. 75 °C (167 °F) |
| Backup Battery | Built-in supercapacitor |
| Input Power | DC 12V-24V (3 pole DC Plug(Ø3.5d x Ø1.1) to Wires (Black: GND / Yellow: B+ / Red: ACC) |
| Power Consumption Hour | Normal Mode (GPS On/3CH) : Avg. 750mA/12V Parking Mode (GPS Off/3CH) : Avg. 600mA/12V *Approx.60mA increase in current when Rear Truck Camera IR LEDs are ON * Actual power consumption may vary depending on use conditions and environment. |
| Certifications | Front: FCC, CE, Telec, IC, UKCA, RoHS, WEEE, RCM Rear: FCC, IC CE, UKCA, RCM, RoHS, WEEE, KC |
| Software | BLACKVUE Viewer * Windows 7 or higher, Mac Sierra OS X (10.12) or higher BLACKVUE Web Viewer * Chrome 71 or higher, Safari 13.0 or higher |
| Application | BLACKVUE Application * Android 8.0 or higher, iOS 13.0 or higher |
| Others | Adaptive Format Free File Management System |
| Bluetooth | Built-in (V2.1+EDR/4.2) |
| LTE | External (optional) |
