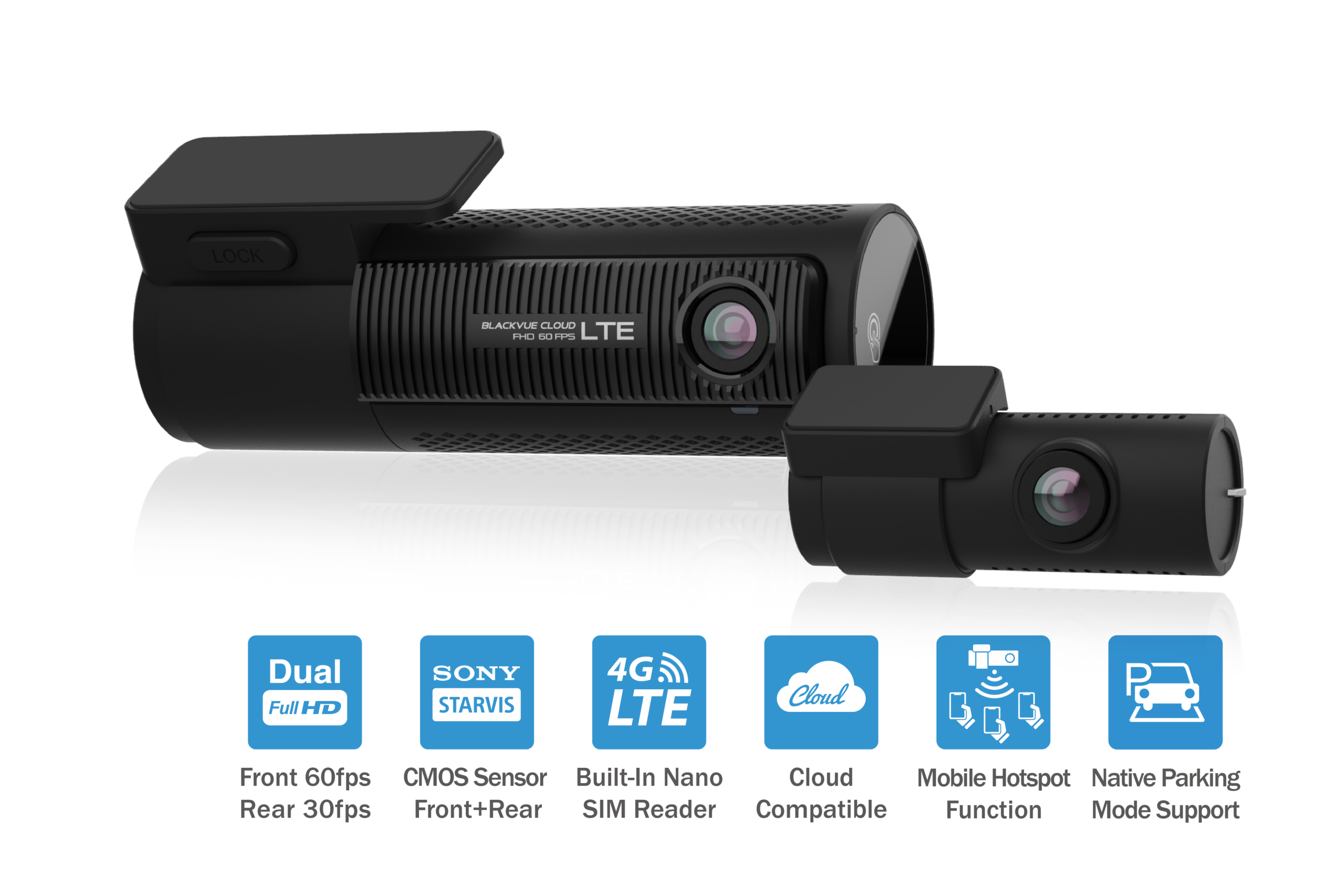

BLACKVUE DR770X-2CH LTE DASHCAM

The DR770X-2CH LTE is a dual-channel dash cam with BlackVue Cloud connectivity.
Both front and rear cameras pack back-illuminated Full HD Sony STARVIS™ image sensors for best image quality under any light.
This stealthy dashcam also comes with built-in GPS, Wi-Fi and native Parking Mode support via included hardwiring cable.

View and download videos easily with the BlackVue App.
Cloud support via Wi-Fi hotspot

Spesification

TANYA TENTANG PRODUK INI

BLACKVUE DR770X-2CH LTE DASHCAM

The DR770X-2CH LTE is a dual-channel dash cam with BlackVue Cloud connectivity.
Both front and rear cameras pack back-illuminated Full HD Sony STARVIS™ image sensors for best image quality under any light.
This stealthy dashcam also comes with built-in GPS, Wi-Fi and native Parking Mode support via included hardwiring cable.

View and download videos easily with the BlackVue App.
Cloud support via Wi-Fi hotspot

Spesification

TANYA TENTANG PRODUK INI

Best low-light clarity

Powered by the Best Dash Cam Sensor

Fine-tuned by BLACKVUE

Front / Rear

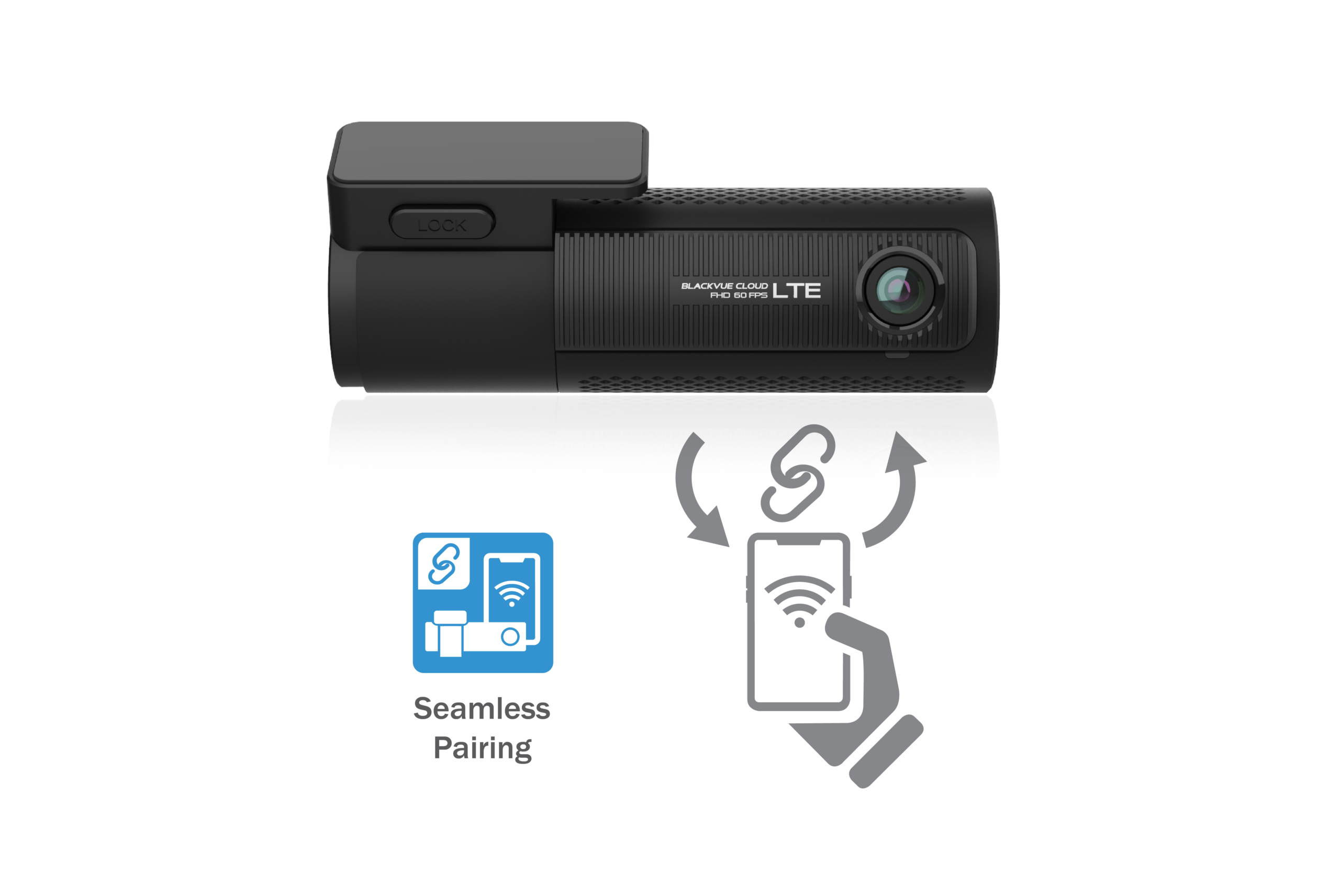

blackvue-dr770x-2ch-lte-seamless-pairing

parking_mode_support-e1730273633938-600×709

Best low-light clarity

Powered by the Best Dash Cam Sensor

Fine-tuned by BLACKVUE

Front / Rear

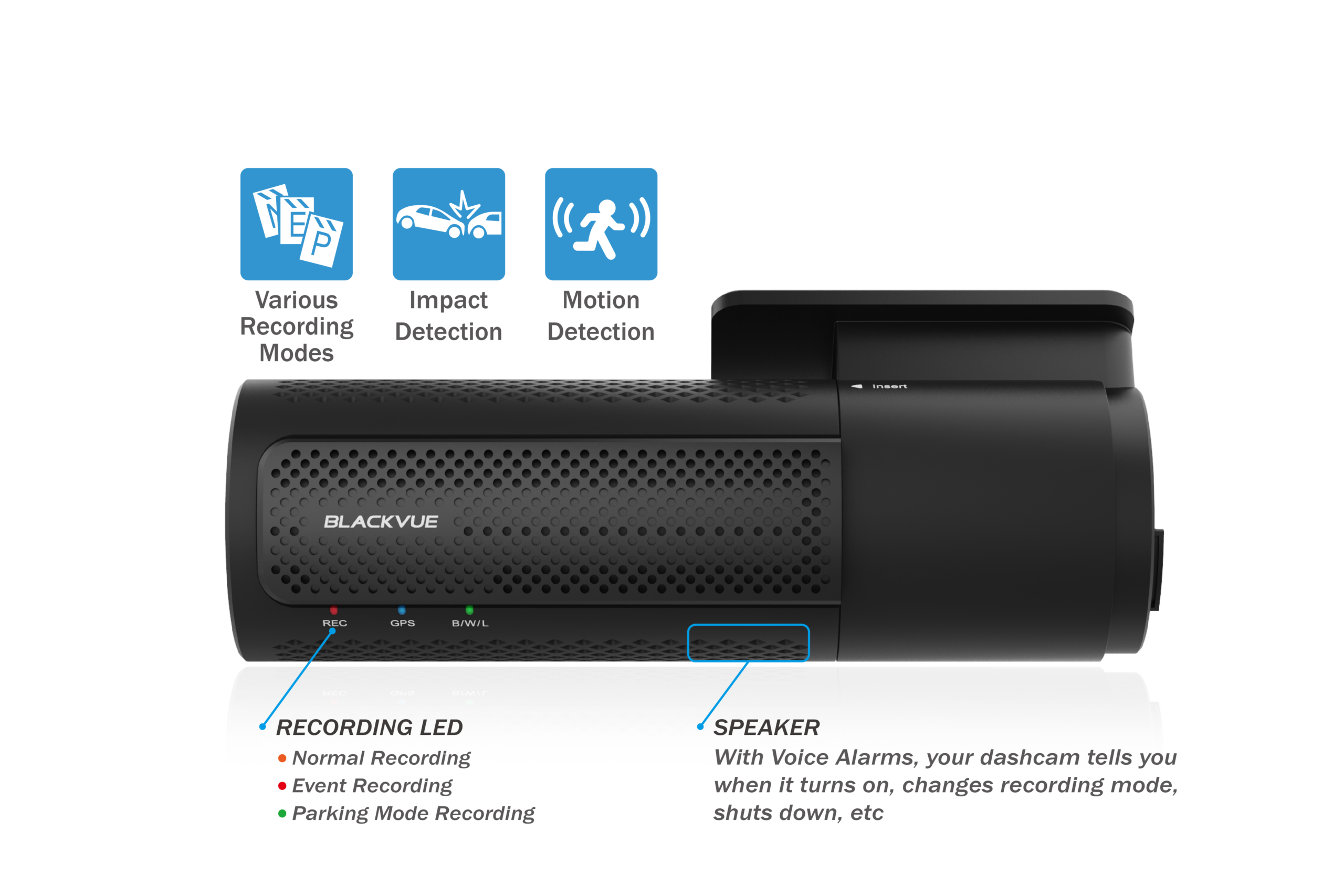

Built-in Impact & Motion Detection

Automatically tags important files
While driving, your BlackVue detects impacts and sudden changes in speed. While parked, it also detects movements (in Motion & Impact detection mode).

Use the filters in the BlackVue App and Viewer
All videos are tagged (Normal, Event, Parking Mode motion or time lapse), so that you can easily find the relevant ones in the BlackVue Viewer for Windows and Mac OS or the BlackVue App for Android and iOS.

blackvue-dr970x-lte-dr770x-lte-motion-impact-detection

Built-in Impact & Motion Detection

Automatically tags important files
While driving, your BlackVue detects impacts and sudden changes in speed. While parked, it also detects movements (in Motion & Impact detection mode).

Use the filters in the BlackVue App and Viewer
All videos are tagged (Normal, Event, Parking Mode motion or time lapse), so that you can easily find the relevant ones in the BlackVue Viewer for Windows and Mac OS or the BlackVue App for Android and iOS.

Your videos are safe

Event Files Overwrite Protection: dashcams record in a loop, overwriting older files when the memory is full. BlackVue can prevent Event files (triggered manually or by impacts) overwriting. Up to fifty (50) files can be protected this way. You can choose to allow new Event files to overwrite past Event files, thus keeping the latest fifty. Adaptive Format-Free File Management: this BlackVue-developed file system improves recording stability and requires less microSD card formatting. SD Card Failure Alert: your BlackVue detects as soon as the microSD card fails and warns you with a “Please check SD card” voice alert.

Your videos are safe

Event Files Overwrite Protection: dashcams record in a loop, overwriting older files when the memory is full. BlackVue can prevent Event files (triggered manually or by impacts) overwriting. Up to fifty (50) files can be protected this way. You can choose to allow new Event files to overwrite past Event files, thus keeping the latest fifty. Adaptive Format-Free File Management: this BlackVue-developed file system improves recording stability and requires less microSD card formatting. SD Card Failure Alert: your BlackVue detects as soon as the microSD card fails and warns you with a “Please check SD card” voice alert.

blackvue-app-viewer-cloud-android-ios-mac-windows-condensed

Manage Videos Easily with the BlackVue App and Viewer

The BlackVue App (iOS/Android) and Viewer (Windows/Mac OS) are free to download and use. Both allow you to change settings and review videos sorted by time and type (Normal/Event/Parking). With the BlackVue App, connect via Wi-Fi to your dashcam to retrieve videos on the spot.

Manage Videos Easily with the BlackVue App and Viewer

The BlackVue App (iOS/Android) and Viewer (Windows/Mac OS) are free to download and use. Both allow you to change settings and review videos sorted by time and type (Normal/Event/Parking). With the BlackVue App, connect via Wi-Fi to your dashcam to retrieve videos on the spot.

High Frame Rate for Extra Fluidity

The advantage of 60FPS video capture

The front camera records extra fluid videos at 60 frames per second, keeping all details sharp even in fast action. With 60fps, motion blur is much reduced compared to 30fps. That means your BlackVue can better capture details–like license plates–even in fast-moving objects.

Note 1: the higher the image quality setting, the higher the bitrate and the bigger the file size. A bigger size will increase the time necessary to transfer a video file over Wi-Fi.
Note 2: Remote Live View using BlackVue Cloud is not affected by the image quality and framerate settings.

High Frame Rate for Extra Fluidity

The advantage of 60FPS video capture

The front camera records extra fluid videos at 60 frames per second, keeping all details sharp even in fast action. With 60fps, motion blur is much reduced compared to 30fps. That means your BlackVue can better capture details–like license plates–even in fast-moving objects.

Note 1: the higher the image quality setting, the higher the bitrate and the bigger the file size. A bigger size will increase the time necessary to transfer a video file over Wi-Fi.
Note 2: Remote Live View using BlackVue Cloud is not affected by the image quality and framerate settings.

Model Name	DR770X-2CH LTE
Channel	2CH
Highlights	Built-in 4G LTE, Sony STARVIS image sensors
Product Dimensions	Front: Black / Width 137.6 mm x Height 43 mm / 155 g Rear: Black / Width 67.4 mm x Height 25 mm / 25 g
Rear Camera Connection	Coaxial cable
Memory Support	microSD card up to 512GB
Recording Modes	Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected). * When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode.
Parking Mode	YES (hardwiring cable included)
Parking Mode Event Voice Notifications	YES
Imaging Sensor	Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel) Rear: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
Viewing Angle	Front: Diagonal 139°, Horizontal 116°, Vertical 61° Rear: Diagonal 139°, Horizontal 116°, Vertical 61°
Resolution Frame Rate	Front: Full HD (1920×1080) @ 60 fps Rear: Full HD (1920×1080) @ 30 fps * Frame rate may vary during Wi-Fi streaming.
Video Codec	H.264 (AVC)
Image Quality and Bitrate Front/Rear	Highest (Extreme): 25+10 Mbps Highest: 12+10 Mbps High: 10+8 Mbps Normal: 8+6 Mbps
Format Free	YES (Adaptive)
Event File Overwrite Protection	YES (up to 50)
SD Card Failure Alert	YES
Scheduled Reboot	YES
Video File Extension	MP4
Wi-Fi	Built-in (802.11n (2.4~2.4835 GHz))
Cloud Compatibel	Yes

GPS	Built-in (Dual Band: GPS, GLONASS)
Microphone	Built-in
Speaker	Built-in
Impact Sensor	3-Axis Acceleration Sensor
LED Indicators	Front: Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED Rear: Rear Security LED
Button	Touch Sensor: Pressing the touch sensor triggers manual recording depending on the firmware settings.
Operation Temperature	-20 °C − 70 °C (-4 °F − 158 °F)
Storage Temperature	-20 °C − 70 °C (-4 °F − 158 °F)
High Temp Cut Off	Approx. 80 °C (176 °F)
Backup Battery	Built-in supercapacitor
Input Power	DC 12V-24V (3 pole DC Plug (Ø3.5d x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC)
Power Consumption Hour	Normal Mode (GPS On/Cloud On) : Avg. 470mA/12V Normal Mode (GPS On/Cloud Off) : Avg. 410mA/12V Parking Mode (GPS Off/Cloud On) : Avg. 370mA/12V Parking Mode (GPS Off/Cloud Off) : Avg. 310mA/12V * Actual power consumption may vary depending on use conditions and environment. * Model DR770X-2CH LTE should be used only in circuits that satisfy Limited Power Source. (Maximum power consumption is to be less than 100 VA or 8 A).
Certifications	Front: FCC, ISED, CE, UKCA, RCM, Telec, RoHS, WEEE, KC Rear: FCC, ISED, CE, UCKA, RCM, RoHS, WEEE, KC
Software	BlackVue Viewer * Windows 7 or higher, Mac Sierra OS X (10.12) or higher BlackVue Web Viewer * Chrome 71 or higher, Safari 13.0 or higher
Application	BlackVue Application * Android 8.0 or higher, iOS 13.0 or higher
Others	Built-in 4G LTE module compatible with Nano-SIM. Frequency Bands: B1,B3,B7,B20
Bluetooth	Built-in (V2.1+EDR/4.2)
LTE	Built-in (SIM card not included)
