blackvue-dr770x-2ch-ir-lte-main-features

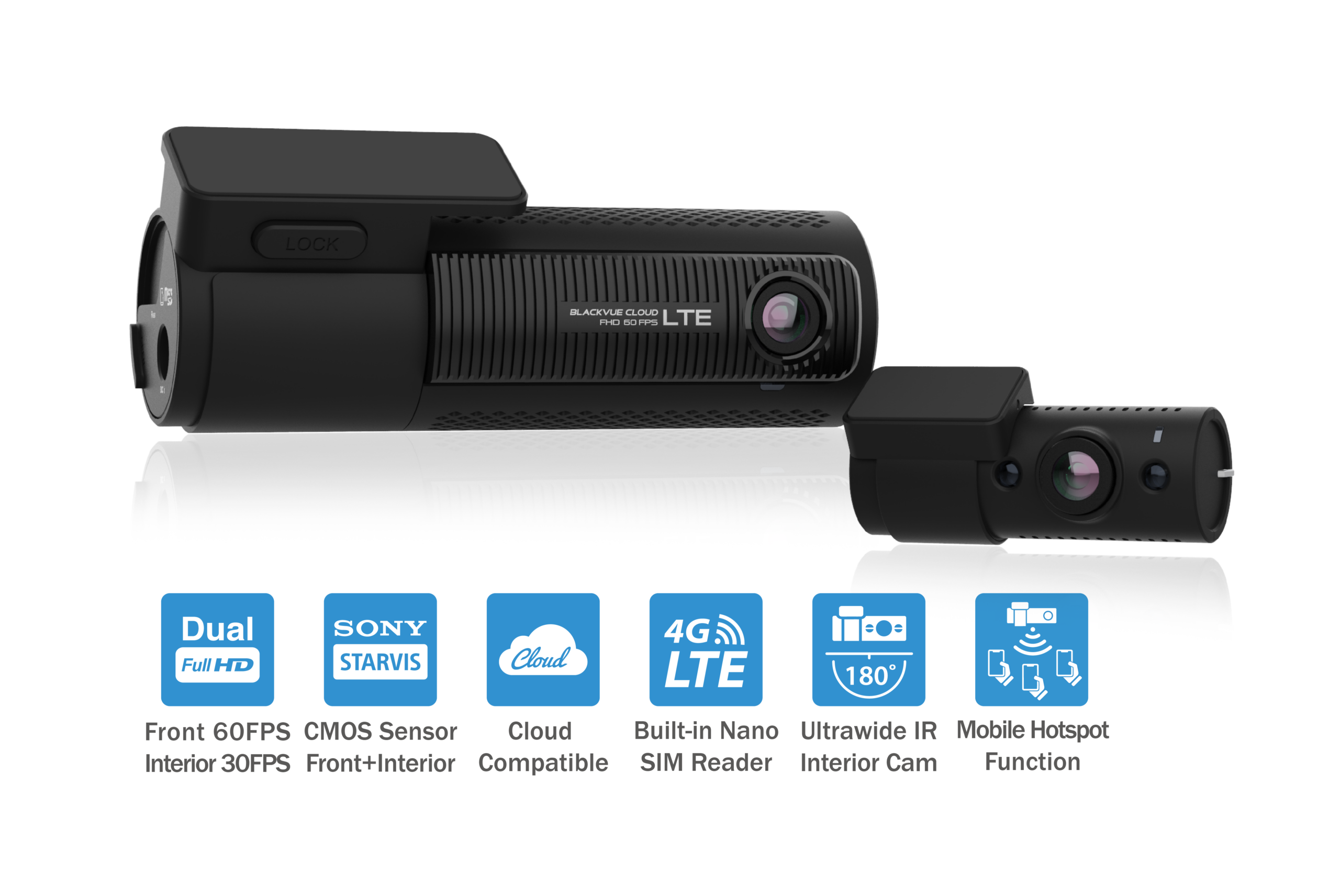

BLACKVUE DR770X-2CH IR LTE DASHCAM

The DR770X-2CH IR LTE is a dual-channel dash cam with BlackVue Cloud connectivity.
Both front and rear cameras pack back-illuminated Full HD Sony STARVIS™ image sensors for best image quality under any light.
This stealthy dashcam also comes with built-in GPS, Wi-Fi and native Parking Mode support via included hardwiring cable.

View and download videos easily with the BlackVue App.
Cloud support via Wi-Fi hotspot

Spesification

TANYA TENTANG PRODUK INI

Specifications
Model Name	DR770X-2CH IR LTE
Channel	2CH
Highlights	Built-in 4G LTE, Sony STARVIS image sensors, Infrared (IR) Interior Camera
Product Dimensions	Front: Black / Width 137.6 mm x Height 43 mm / 155 g Rear: Black / Width 67.4 mm x Height 25 mm / 27 g
Rear Camera Connection	Coaxial cable
Memory Support	microSD card up to 512GB
Recording Modes	Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected). * When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode.
Parking Mode	YES (hardwiring cable included)
Parking Mode Event Voice Notifications	YES
Imaging Sensor	Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel) Interior: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
Viewing Angle	Front: Diagonal 139°, Horizontal 116°, Vertical 61° Interior: Diagonal 180°, Horizontal 150°, Vertical 93°
Resolution Frame Rate	Front / Interior Full HD (1920×1080) @60fps – Full HD (1920×1080) @30fps * Frame rate may vary during Wi-Fi streaming.
Video Codec	H.264 (AVC)
Image Quality and Bitrate Front/Rear	Highest (Extreme): 25+10 Mbps Highest: 12+10 Mbps High: 10+8 Mbps Normal: 8+6 Mbps
Format Free	YES (Adaptive)
Event File Overwrite Protection	YES (up to 50)
SD Card Failure Alert	YES
Scheduled Reboot	YES
Video File Extension	MP4
Wi-Fi	Built-in (802.11n (2.4~2.4835 GHz))
Cloud Compatible	YES
GPS	Built-in

Specifications
Microphone	Built-in
Speaker	Built-in
Impact Sensor	3-Axis Acceleration Sensor
LED Indicators	Front: REC LED, GPS LED, B/W /L LED, Front Security LED Interior: Interior Security LED
Rear Camera IR Illumination	940 nm (4 Infrared (IR) LEDs)
Button	Touch Sensor: Pressing the touch sensor triggers manual recording depending on the firmware settings.
Operation Temperature	-20 °C − 70 °C (-4 °F − 158 °F)
Storage Temperature	-20 °C − 70 °C (-4 °F − 158 °F)
High Temp Cut Off	Approx. 80 °C (176 °F)
Backup Battery	Built-in supercapacitor
Input Power	DC 12V-24V (3 pole DC Plug (Ø3.5d x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC)
Power Consumption Hour	Normal Mode (GPS On/Cloud On) : Avg. 470mA/12V Normal Mode (GPS On/Cloud Off) : Avg. 410mA/12V Parking Mode (GPS Off/Cloud On) : Avg. 370mA/12V Parking Mode (GPS Off/Cloud Off) : Avg. 310mA/12V* Approx. 40mA increase in current when IR LEDs are ON. * Actual power consumption may vary depending on use conditions and environment. * Model DR770X-2CH IR LTE should be used only in circuits that satisfy Limited Power Source. (Maximum power consumption is to be less than 100 VA or 8 A).
Certifications	Front: FCC, ISED, CE, UKCA, RCM, Telec, RoHS, WEEE, KC Interior: FCC, ISED, CE, UKCA, RCM, RoHS, WEEE, KC
Software	BlackVue Viewer * Windows 7 or higher, Mac Sierra OS X (10.12) or higher BlackVue Web Viewer * Chrome 71 or higher, Safari 13.0 or higher
Application	BlackVue Application * Android 8.0 or higher, iOS 13.0 or higher
Others	Built-in 4G LTE module compatible with Nano-SIM. Frequency Bands: North America (NA version): B2, B4, B12 \| Australia (AU version): B3, B5 \| Japan (JP version): B1, B3, B18, B19 \| Europe/Rest of world (GL version): B1, B3, B7, B20
Bluetooth	Built-in (V2.1+EDR/4.2)
LTE	Built-in (SIM card not included)
